📋 Overview
This miniature DC-DC step-down converter takes an 8–24V DC input (nominally 12V) and delivers a clean, regulated 5V DC output at up to 3A (15W maximum). It's a waterproof, straightforward way to power 5V electronics — dash cams, USB-powered devices, microcontroller boards, and more — directly from a 12V battery, vehicle system, or wall adapter.
Built as a non-isolated buck (step-down) converter, it operates at over 96% efficiency, so very little power is wasted as heat even under full load. The epoxy-sealed housing makes it safe for outdoor, automotive, or otherwise exposed installations.
⭐ Key Features
- Regulated 5V output — Clean, stable power for 5V-logic devices, USB accessories, and sensors
- Wide input range — Accepts 8–24V DC, ideal for 12V nominal systems with voltage sag or charging spikes
- Epoxy-sealed, waterproof housing — Safe for outdoor, automotive, and marine use
- High efficiency — Greater than 96% efficient, minimal heat generation
- Built-in protection — Overload, over-current, over-voltage, and low-voltage protection with automatic recovery
- Compact and lightweight — Easy to tuck into enclosures, dashboards, or inline wiring runs
📊 Specifications
| Specification | Value |
|---|
| Envistia P/N | F23J5V3A4S |
| Input Voltage Range | 8–24V DC |
| Nominal Input | 12V DC |
| Output Voltage | 5V |
| Max Output Current | 3A |
| Max Output Power | 15W |
| Approx. Max Input Current (at full load, 12V in) | ~1.25A |
| Quiescent Current (no load) | <10mA |
| Efficiency | >96% |
| Operating Temperature | -40°C to +70°C |

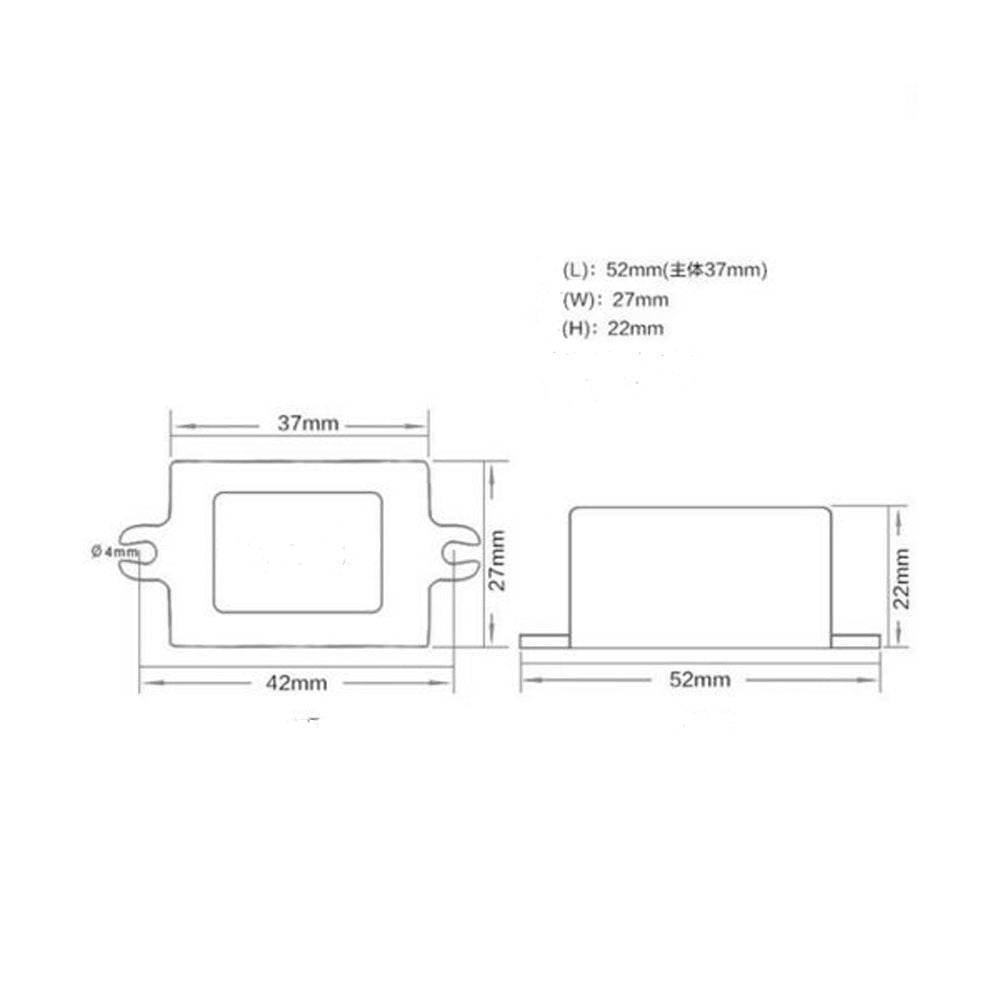

| Size (L × W × H) | Approx. 38 × 27 × 23 mm (1.50 × 1.06 × 0.91 inches) L × W × H (52 mm / 2.05 inches overall length including mounting tabs) |
| Weight | Approx. 30g |
| Input & Output Wire Length | Approx. 12cm (4.7 inches) per lead |
| Input & Output Wire Size | 0.5mm² cross-sectional area, equivalent to ~20 AWG |
| Case Color | White |
| Housing | Epoxy-sealed, waterproof |
🔌 Wiring & Connections

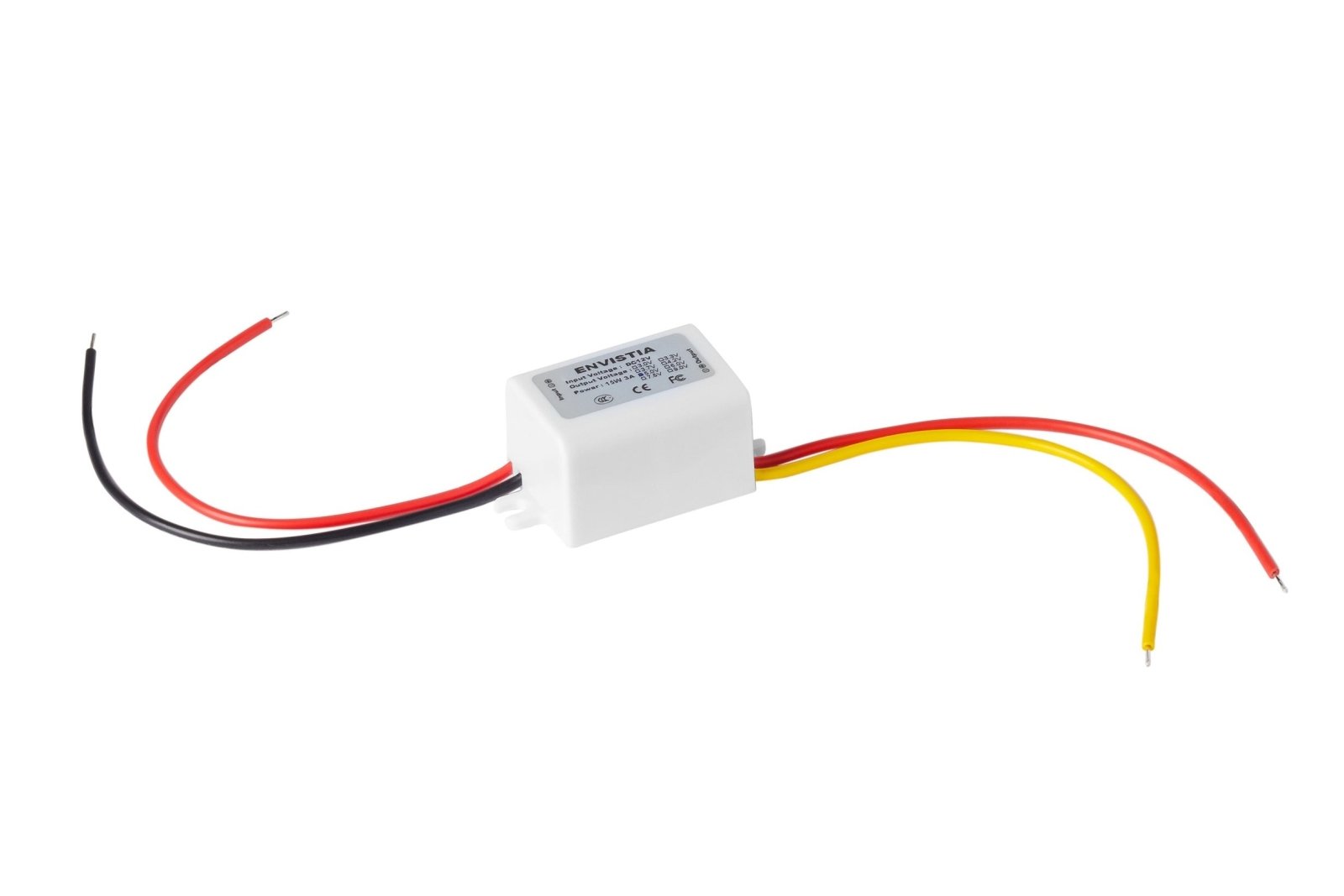

Two pairs of wires — no pins or connectors needed. Simply splice, solder, or crimp into your circuit.
| Wire Color | Function |
|---|
| Red (input side) | Input +V — connect to your 12V positive supply |
| Black (input side) | Input Ground — connect to your 12V negative/ground |
| Red (output side) | Output +V — connect to your load's positive terminal |
| Yellow (output side) | Output Ground — connect to your load's negative/ground terminal |
Wire gauge: all leads are 0.5mm² cross-sectional area (20 AWG).
⚠️ Important: Double-check polarity before powering up. Reversing the input wires can damage the converter, and reversing the output wires can damage your connected device.
⚠️ Important Notes
Your 12V input power source must be able to supply at least as much power as your load will draw from the output, divided by the converter's efficiency (~96%). If the input source can't keep up, the output voltage will fold back (sag) rather than deliver the full 5V. See the full User Guide linked below for wiring diagrams and a detailed power-budget walkthrough.
📦 What's in the Box
- 1× 12V to 5V 3A Mini DC-DC Step-Down Converter (F23J5V3A4S)
🎯 Applications
- Dash cams and USB accessories — Convert 12V vehicle power down to the 5V that most USB-powered dash cams and gadgets expect
- Microcontroller and hobby electronics projects — Cleanly power Arduino, Raspberry Pi, or similar 5V boards from a 12V supply
- Networking and low-voltage equipment — Power 5V switches, routers, or modules from a 12V battery or solar setup
- Retrofit and alarm system power — Step down 12V power to run legacy 5V equipment without rewiring the whole system
