The KBPC5010 is a robust and reliable single-phase full bridge rectifier designed for converting AC voltage into DC voltage. Featuring a high surge current capability and an electrically isolated metal case, it ensures efficient heat dissipation and long-lasting performance. Ideal for various power supply applications, the KBPC5010 offers exceptional value and quality.
Key Features:
- High Voltage and Current: 1000V maximum repetitive peak reverse voltage and 50A maximum average forward rectified output current.
- UL Listed: UL listed under the Recognized Component Index, file number E142814.
- Flammability Rating: The plastic material used carries Underwriters Laboratory flammability recognition 94V-0.
- High Surge Current: Surge overload rating of 400A.
- Electrically Isolated Metal Case: Provides maximum heat dissipation and allows for easy mounting to a chassis or heat sink.
- Isolation Voltage: Case to terminal isolation voltage of 2500V.
- Universal Terminals: Universal 4-way terminals, snap-on, wrap-around, solder, or P.C. Board mounting for flexible connection options.
Specifications:
Electrical Specifications
| Parameter | Symbol | Value | Unit |
|---|
| Maximum Repetitive Peak Reverse Voltage | VRRM | 1000 | V |
| Maximum RMS Bridge Input Voltage | VRMS | 700 | V |
| Maximum DC Blocking Voltage | VDC | 1000 | V |
| Maximum Average Forward Rectified Output Current at TA=40°C | IF(AV) | 50 | A |
| Peak Forward Surge Current (Single Sine-Wave Superimposed on Rated Load) | IFSM | 400 | A |
| Typical Thermal Resistance per Element | RθJA | 2.5 | °C/W |
| Operating Junction and Storage Temperature Range | Tj, TSTG | -55 to +150 | °C |
| Maximum Instantaneous Forward Voltage Drop per Leg at 25A | VF | 1.0 | V |
| Maximum DC Reverse Current at Rated TA=25°C | IR | 10 | uA |
| DC Blocking Voltage per Element at TA=125°C | IR | 500 | uA |
Mechanical Specifications
- Case: Metal Case
- Terminals: Plated 0.25" (6.35mm) Faston
- Weight: 1.116 ounce, 31.6 grams (approx)
- Mounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency
- Mounting Torque: 20 in-lb max.
Package includes:

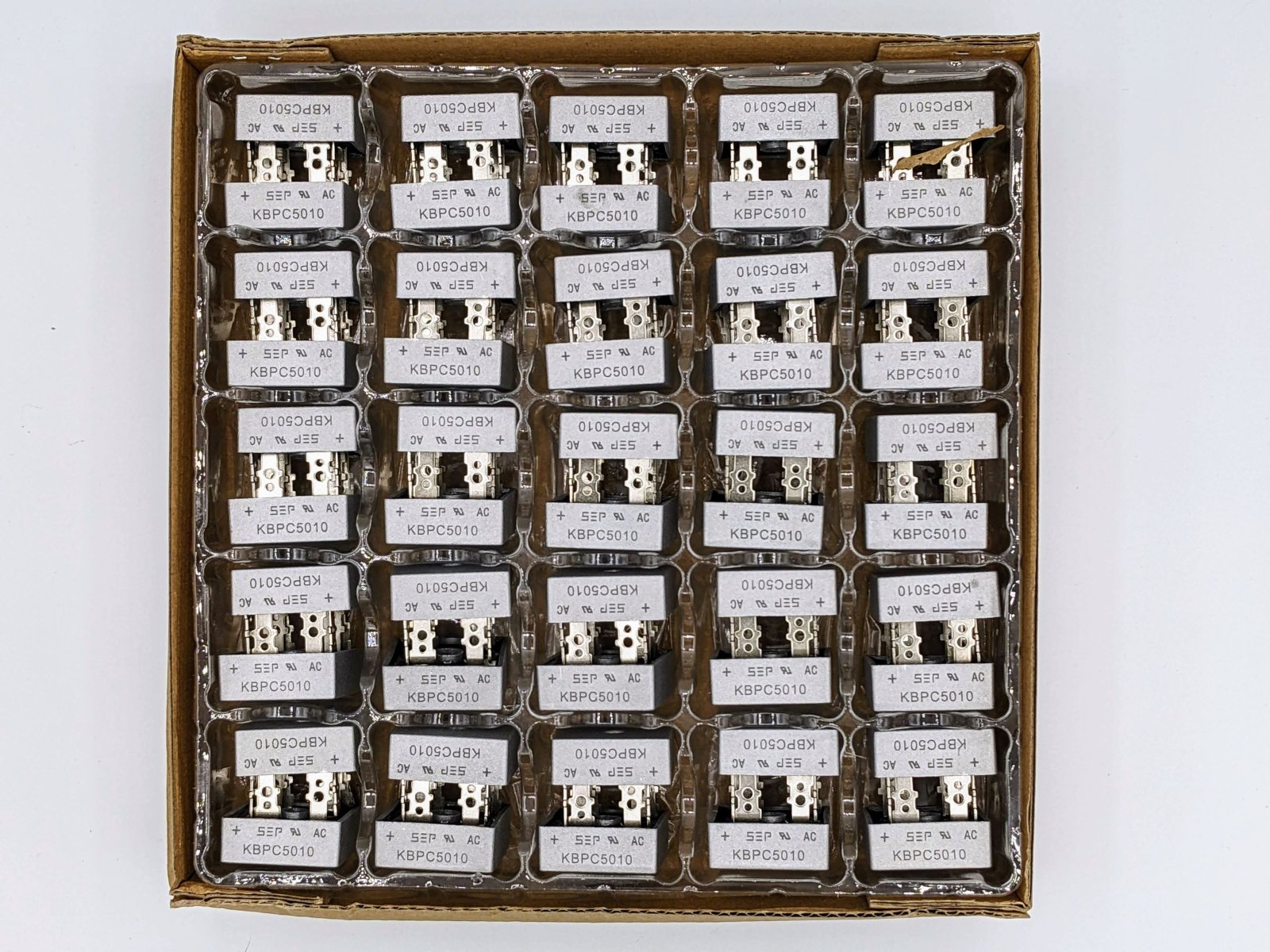

- 50x (50 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifiers
