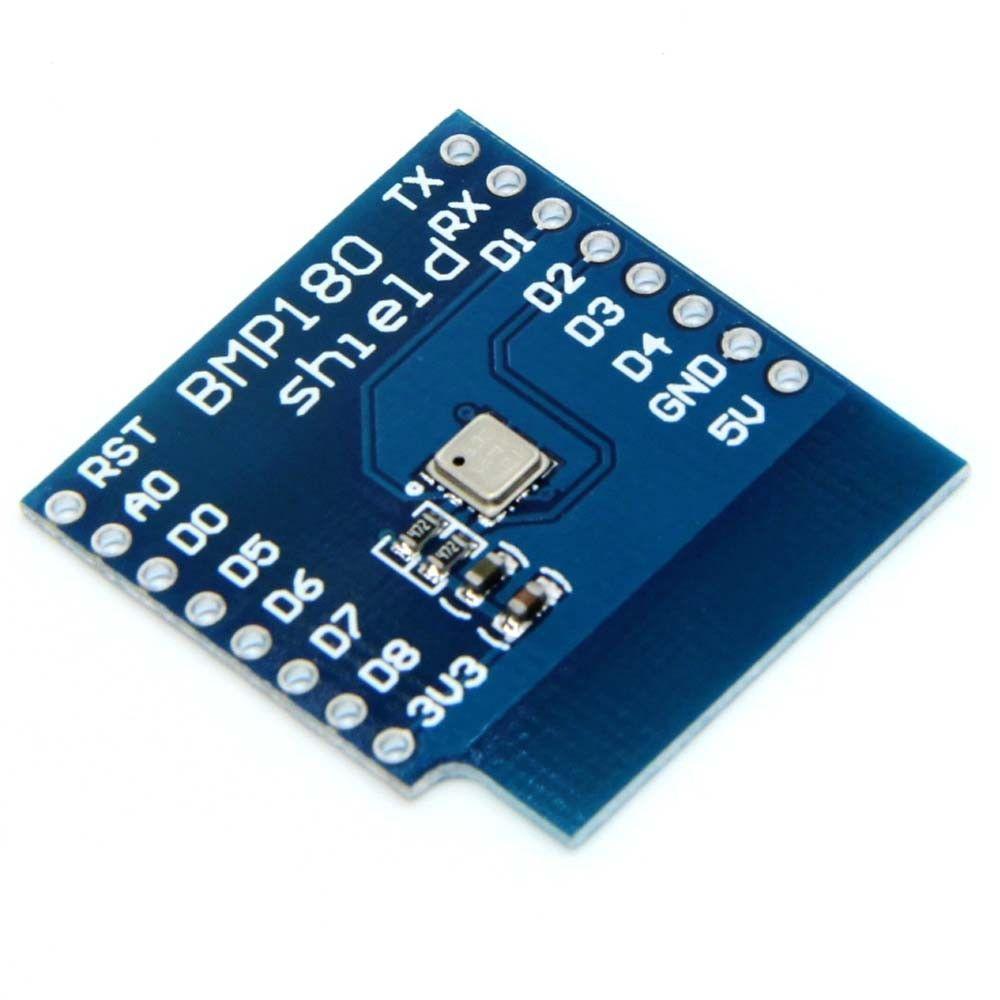

This BMP180 Digital Temperature and Barometric Pressure Sensor Shield for the allows for precise measurement of atmospheric pressure and temperature and can be connected over WiFi.
The BMP180 is a digital barometric pressure sensor of Bosch Sensortec, with a very high performance, which enables applications in advanced mobile devices and IoT. The ultra-low power consumption down to 3 μA makes the BMP180 the leader in power saving. This shield uses the Bosch BMP180 to measure barometric pressure and temperature from an I2C 3.3V WEMOS or WEMOS-compatible microcontroller.
Combined with a D1 Mini ESP8266 board, this information can be communicated via internet and be used to control a system.
Features and Specifications:
Interface: I2C
Temperature: 0..+65C
Pressure Range: 300 to 1100hPa (+9000m to -500m relating to sea level)
Voltage Range: 1.8..3.6V
All I/O are designed to be 3.3V compliant only.

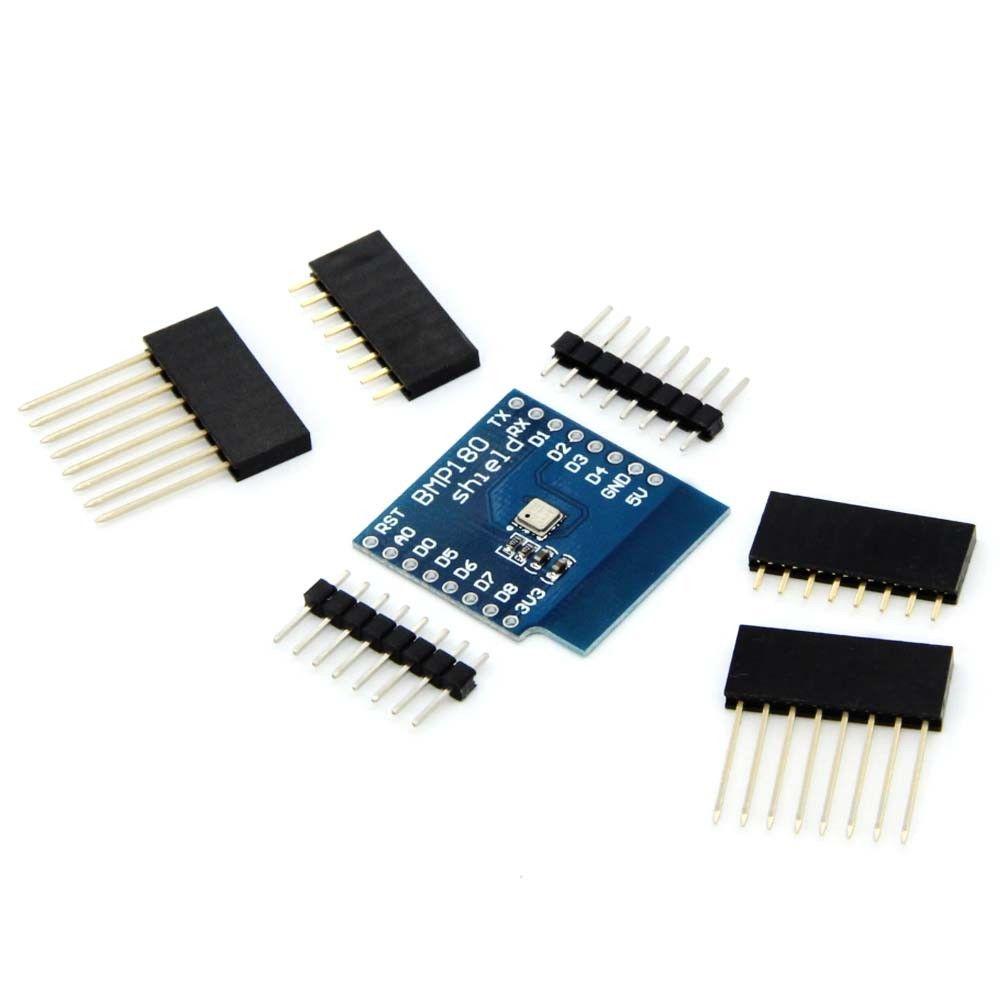

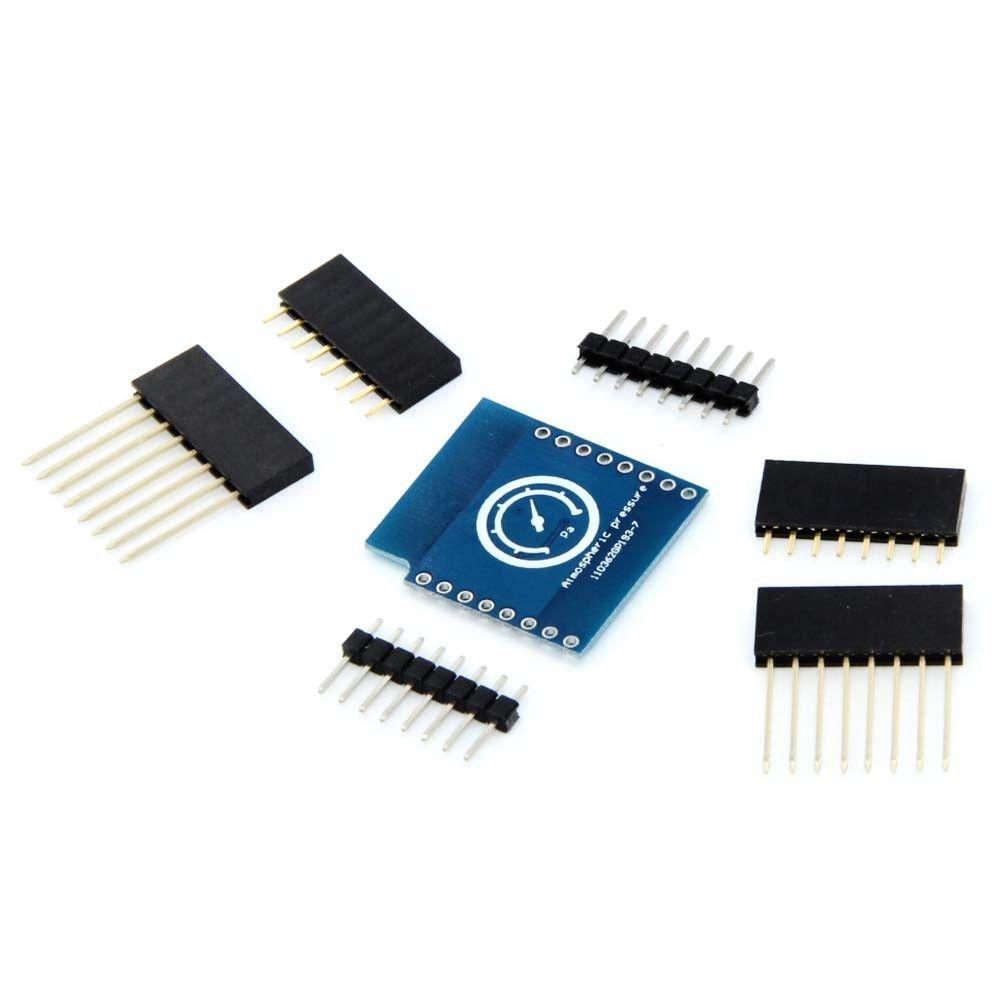

This D1 Mini shield comes with 3 different types of header connectors to support various configurations:
- Female
- Male
- Female/Male (long female)
Package Includes:
1x BMP180 Temperature and Barometric Pressure Shield for D1 Mini
Two each Female, Male, and Female/Male (long female) connectors
