RCPORT-PLC300 Wireless USB Adapter for PLC - 150m Range | Tag & Connect Technology

Product Description

Transform Your PLC Programming Experience with Wireless Freedom

Say goodbye to messy cables and the 5-meter USB limitation! The Chipsen RCPORT-PLC300 is a revolutionary wireless USB communication system designed specifically for PLCs, enabling seamless wireless connectivity up to 150 meters (expandable to 1.5km with extension).

Key Features

🔌 Universal PLC Compatibility

• Works with major PLC brands: Mitsubishi, LS Electric, Siemens, ABB, Rockwell Automation, Fuji Electric, Panasonic, CIMON, OMRON, LG, and more
• Compatible with both serial and USB PLC communication protocols

📡 Advanced Wireless Technology

• 2.4 GHz wireless communication
• Reliable range up to 150 meters (492 feet)
• Extendable to 1,500 meters with optional dipole antennas
• Stable performance equivalent to direct USB connection

⚡ Revolutionary Tag & Connect Setup

• No complex configuration required
• Simply touch the TAG areas on both devices together
• Automatic pairing in seconds
• Perfect for non-technical users

🔋 Built-in Battery (PLC300B)

• 3.7V 2000mAh rechargeable battery (7.4Wh)
• Portable operation without external power
• Battery level indicator with LED display
• DC input support up to 24V for continuous operation

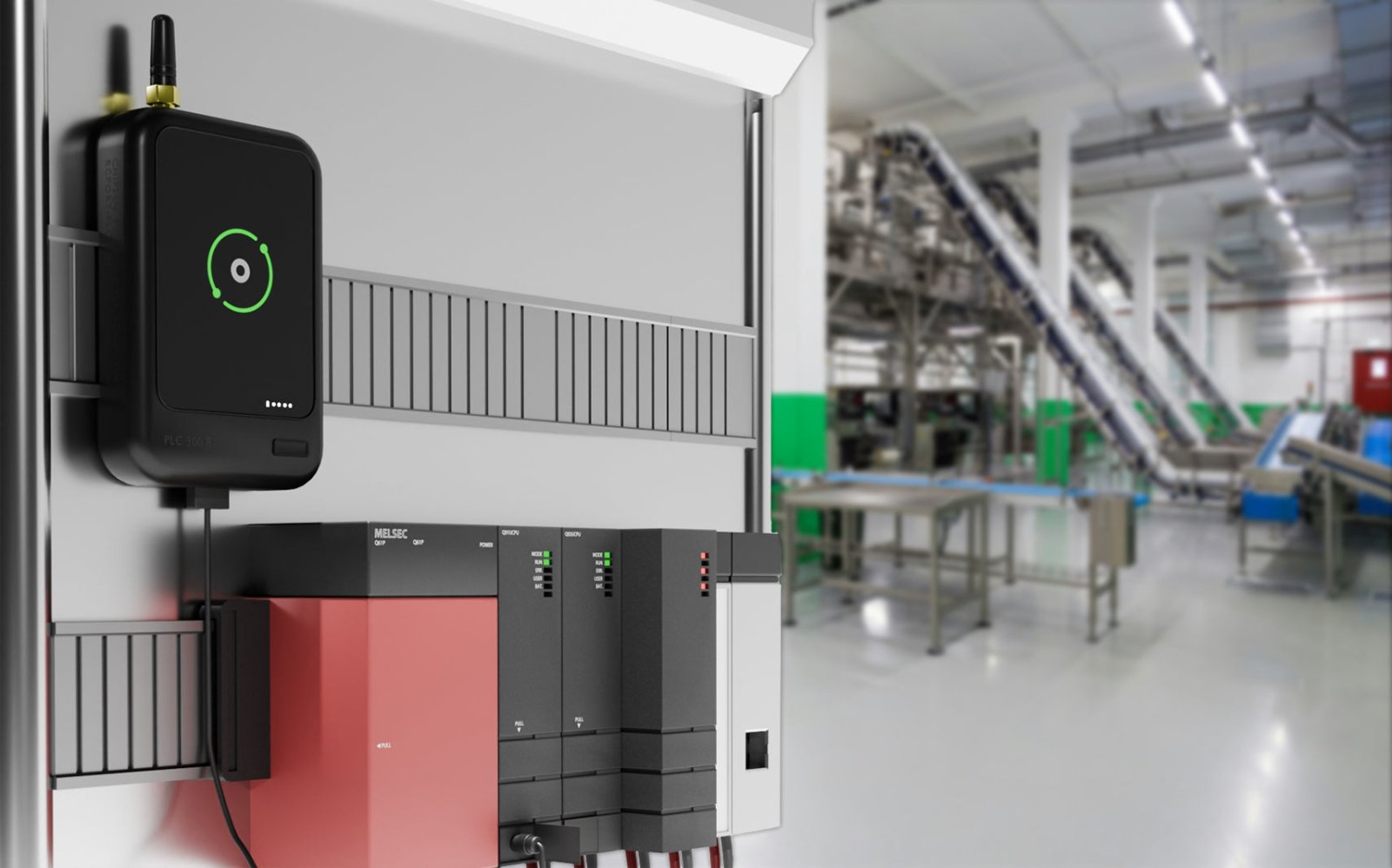

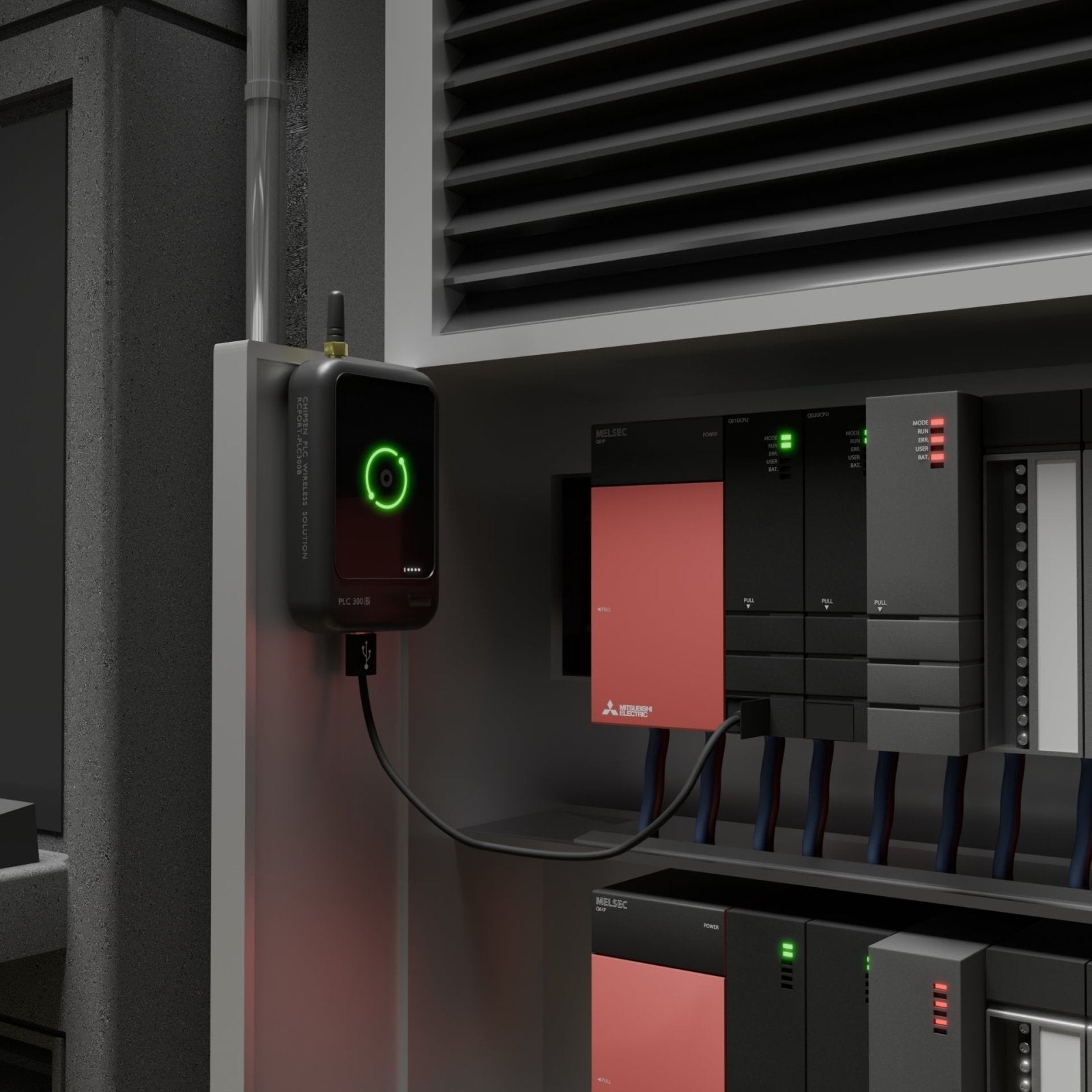

🧲 Magnetic Mounting

• Built-in magnets for secure attachment to metal surfaces
• Easy installation on PLC cabinets and control panels
• Compact, industrial-grade design

🔄 Multi-Point Communication

• Supports 1:N wireless communication
• Connect one PC to multiple PLCs simultaneously
• Maintain existing connections when adding new devices

💻 Professional Management Software

• Free PLC300 Manager software included
• Real-time connection monitoring
• Supports Web-based interface

Technical Specifications

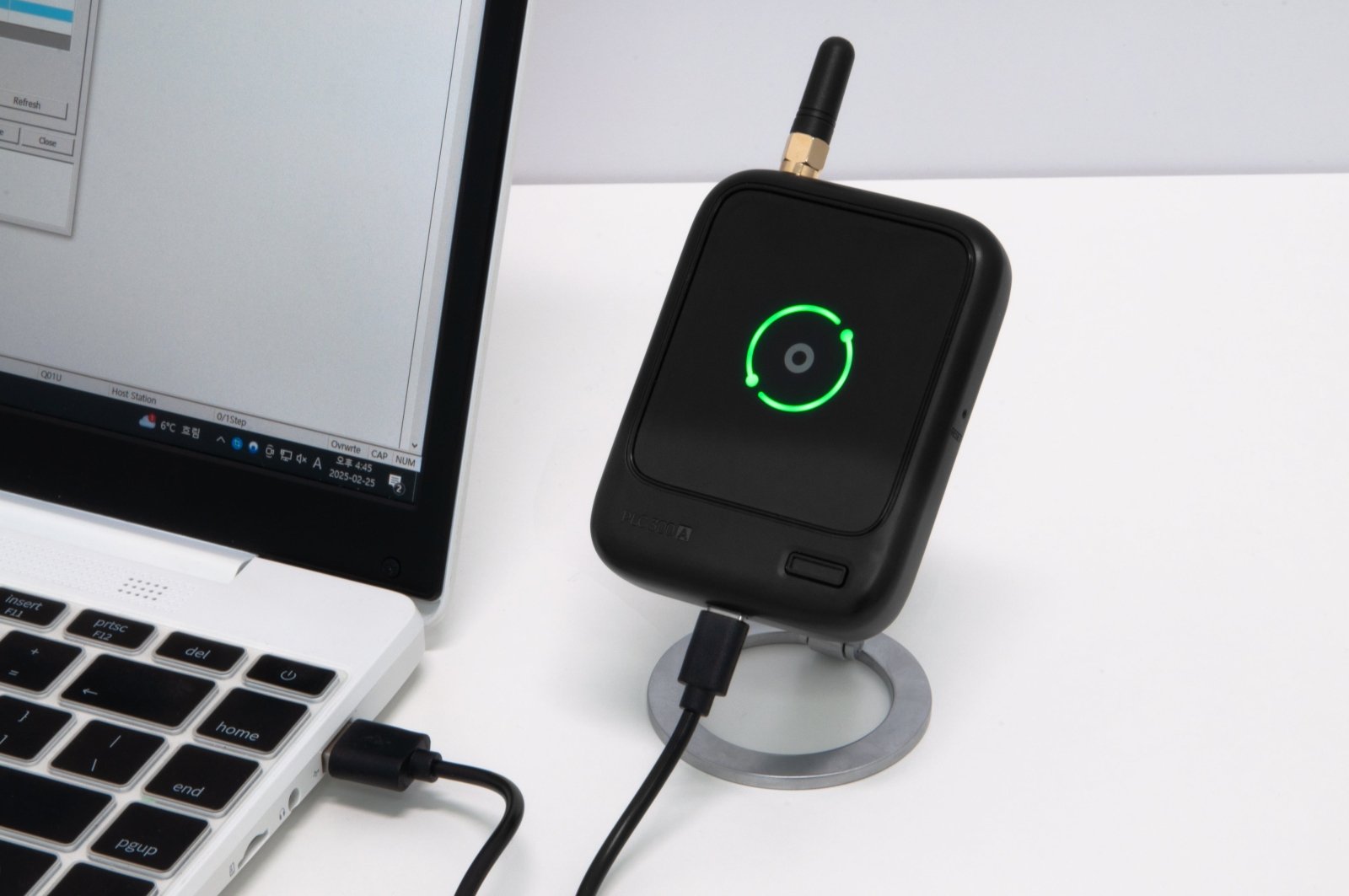

RCPORT-PLC300A (PC Side)

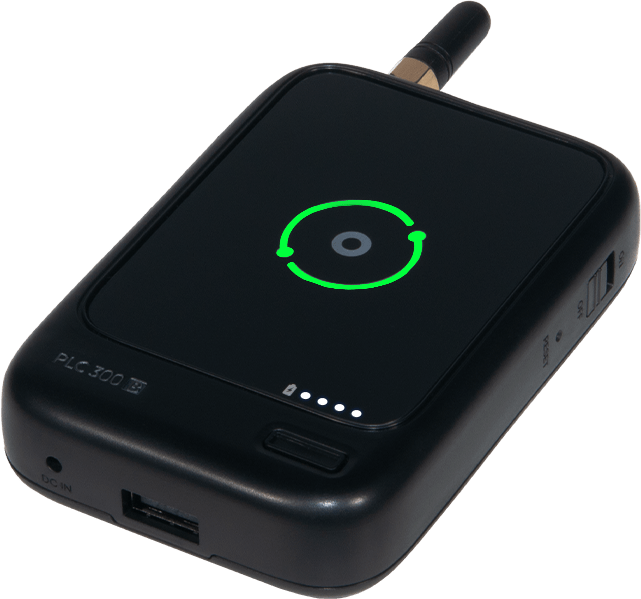

RCPORT-PLC300B (PLC Side)

Wireless Performance

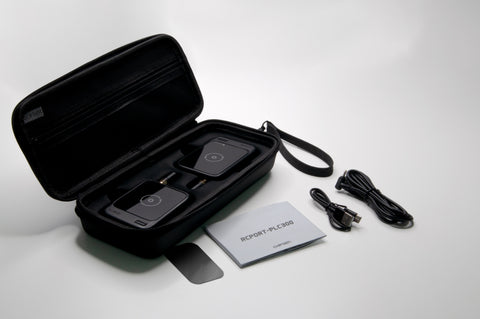

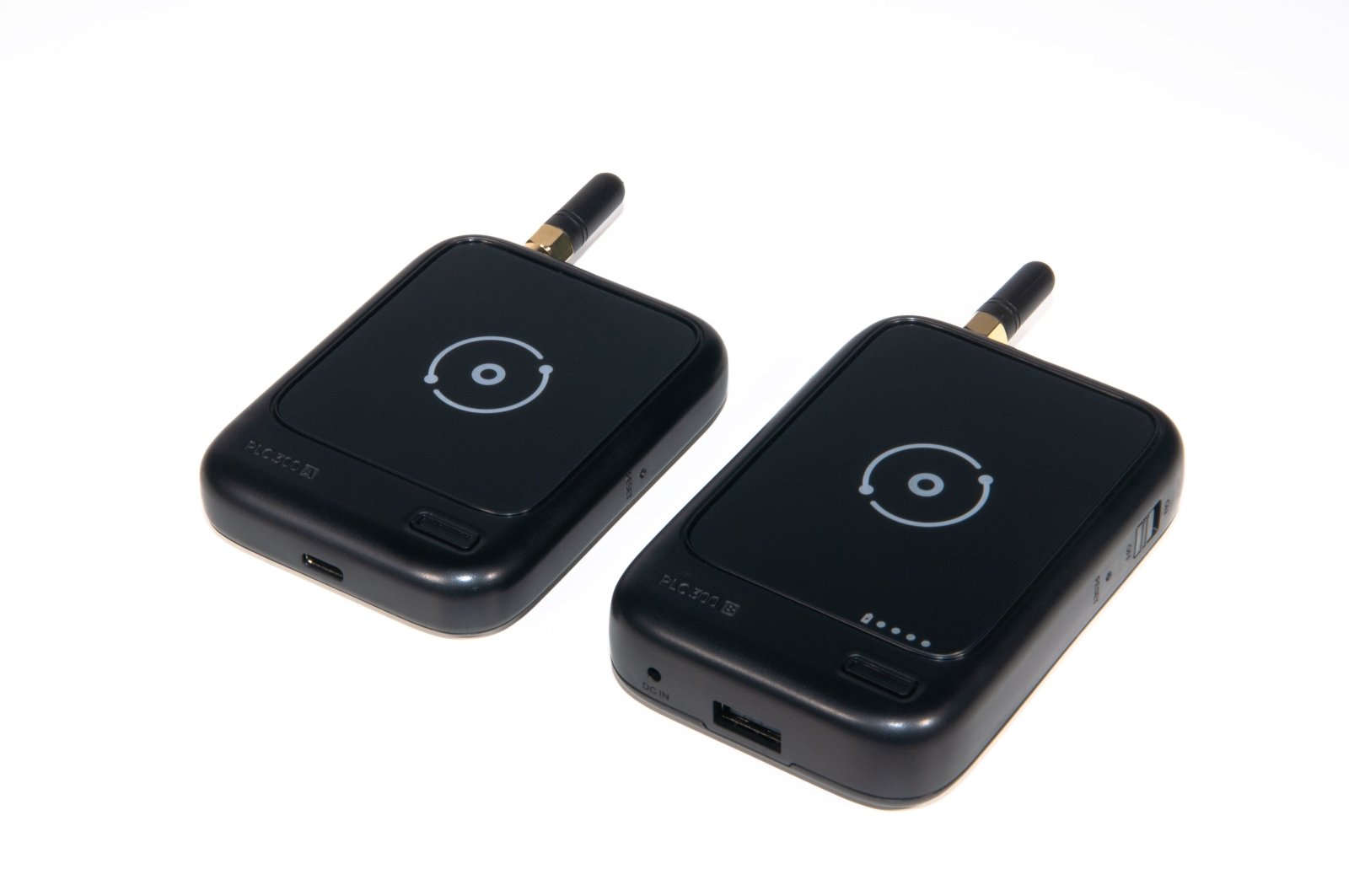

Package Contents

• 1× RCPORT-PLC300A PC-side wireless USB adapter (USB-C connection)
• 1× RCPORT-PLC300B PLC-side wireless USB adapter (USB-A connection) with built-in rechargeable battery
• 2× SMA RF Antennas
• USB cables
• Quick Setup Guide (Warranty Card included)

The contents above are for the PLC300A + PLC300B Set.

Certifications & Compliance

✅ FCC Certified (USA)
✅ CE Certified (Europe)
✅ KC Certified (Korea)
✅ JAPAN MIC Certified
✅ RoHS Compliant (Environmental)

Applications & Use Cases

• Ladder Programming - Download and modify PLC programs wirelessly
• HMI Communication - Connect HMI panels without cable constraints
• Touch Panel Programming - Transfer programs to touch panels remotely
• Remote PLC Control - Monitor and control PLCs from a distance
• Communication Monitoring - Real-time data monitoring and diagnostics
• Multi-PLC Management - Manage multiple PLCs from a single PC
• Field Service - Eliminate cable hassles during maintenance and troubleshooting

PLC300 Documentation

What Makes The Chipsen RCPORT-PLC300 Different?

Traditional USB Cable Limitations:

❌ 5-meter maximum distance
❌ Cable clutter and management issues
❌ Physical wear and connector damage
❌ Limited mobility during programming

RCPORT-PLC300 Advantages:

✅ 150-meter wireless range (30x improvement)
✅ Clean, cable-free workspace
✅ Durable wireless connection
✅ Complete freedom of movement
✅ One-to-many communication capability

Easy Setup in 4 Steps

1. Power On - Turn on both devices and wait ~1 minute for boot-up
2. Enter Tag Mode - Press and hold the Tag button for 2 seconds on both devices
3. Tag to Connect - Touch the TAG areas on the back of both devices together

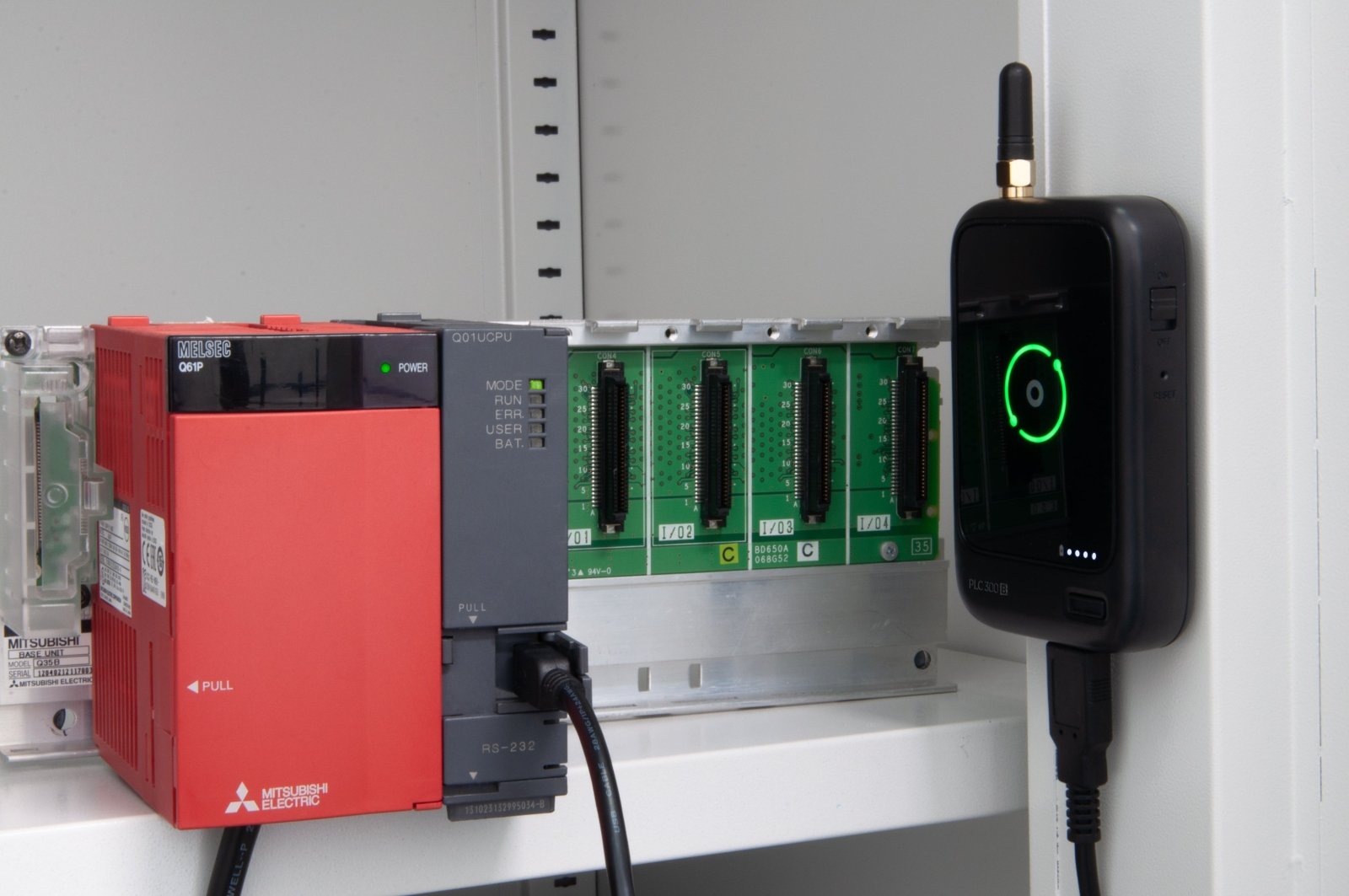

4. Start Working - Connect PLC300A to your PC and PLC300B to your PLC

That's it! No drivers, no complex configuration, no IT expertise required.

Video: RCPORT-PLC300 Setup Guide: Wireless PLC Connection in 1 Minute

Safety & Usage Notes

⚠️ Important Safety Information:

• Do not expose to water or humid environments
• Do not disassemble or modify the device
• Use provided USB cables or ensure proper power supply
• Do not charge near flammable materials
• Keep away from pacemakers and sensitive medical devices
• Wireless interference may occur near strong electronic devices
• Product designed for industrial use

Frequently Asked Questions

Q: Does this work with my PLC brand?
A: The RCPORT-PLC300 is compatible with most major PLC brands including Mitsubishi, LS Electric, Siemens, ABB, and many others. If your PLC uses USB or serial communication, it will likely work.

Q: How long does the battery last?
A: The PLC300B features a 2000mAh battery that provides extended operation time. Battery life depends on usage patterns and wireless activity.

Q: Can I connect multiple PLCs to one PC?
A: Yes! The system supports 1:N multi-communication, allowing you to connect one PC to multiple PLCs wirelessly.

Q: What is the actual wireless range?
A: Up to 150 meters in open space. Range may be reduced by obstacles, metal structures, or electronic interference. Extension options available for up to 1.5km.

Q: Is special software required?
A: The free PLC300 Manager software is available for . The device also features a web-based interface for configuration.
