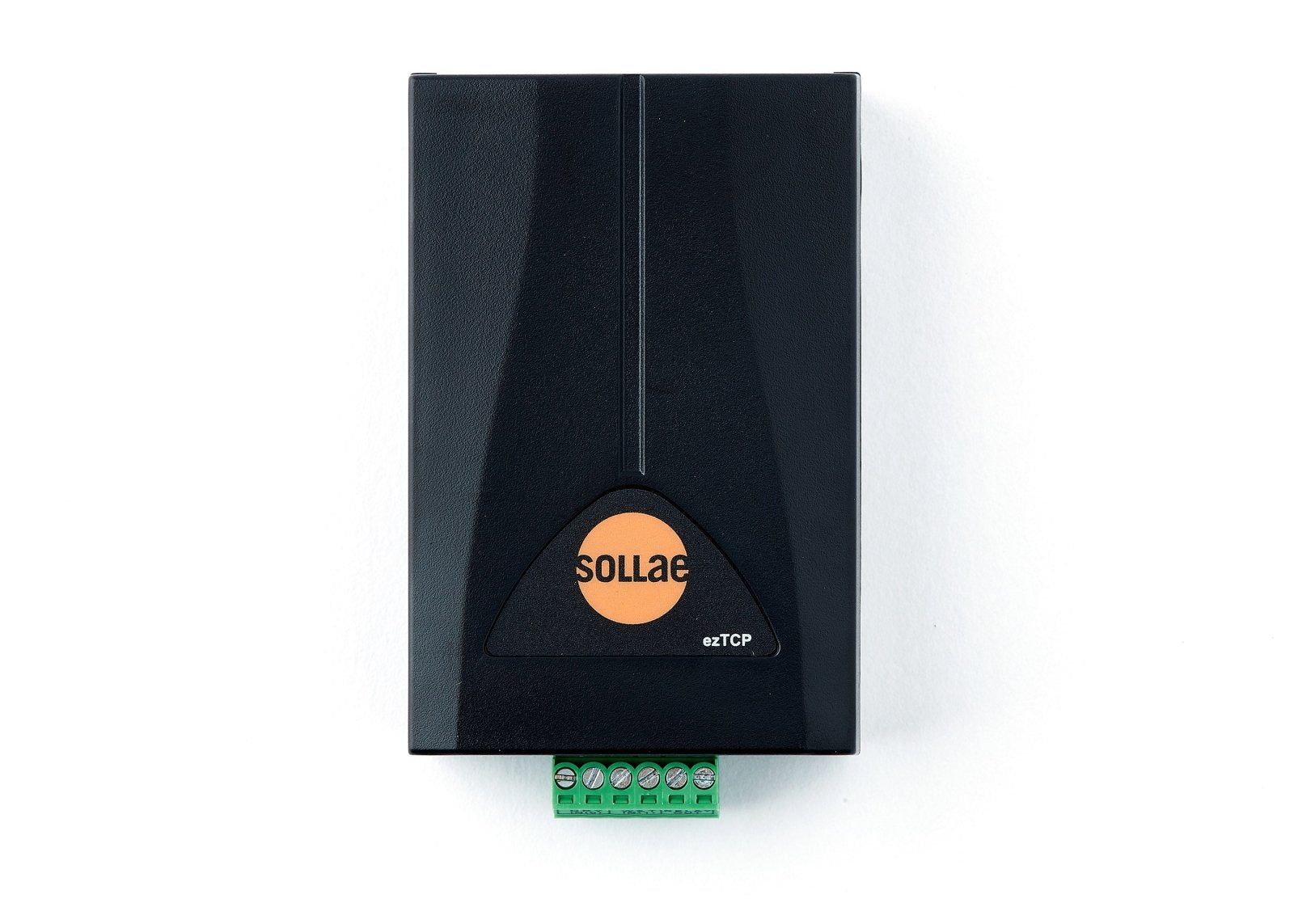

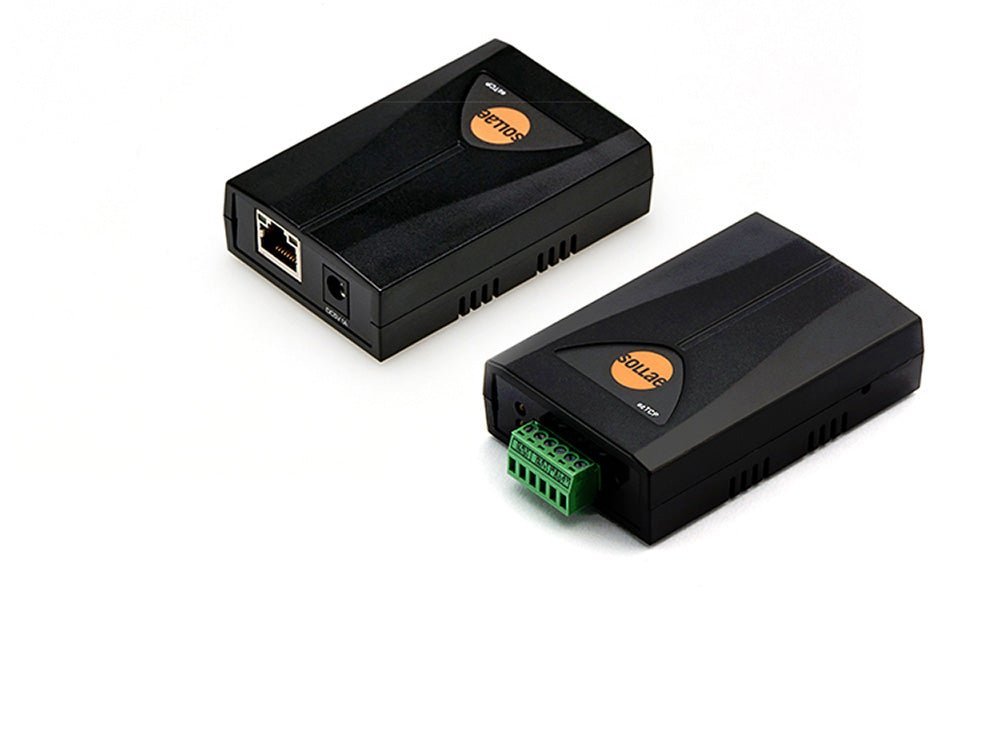

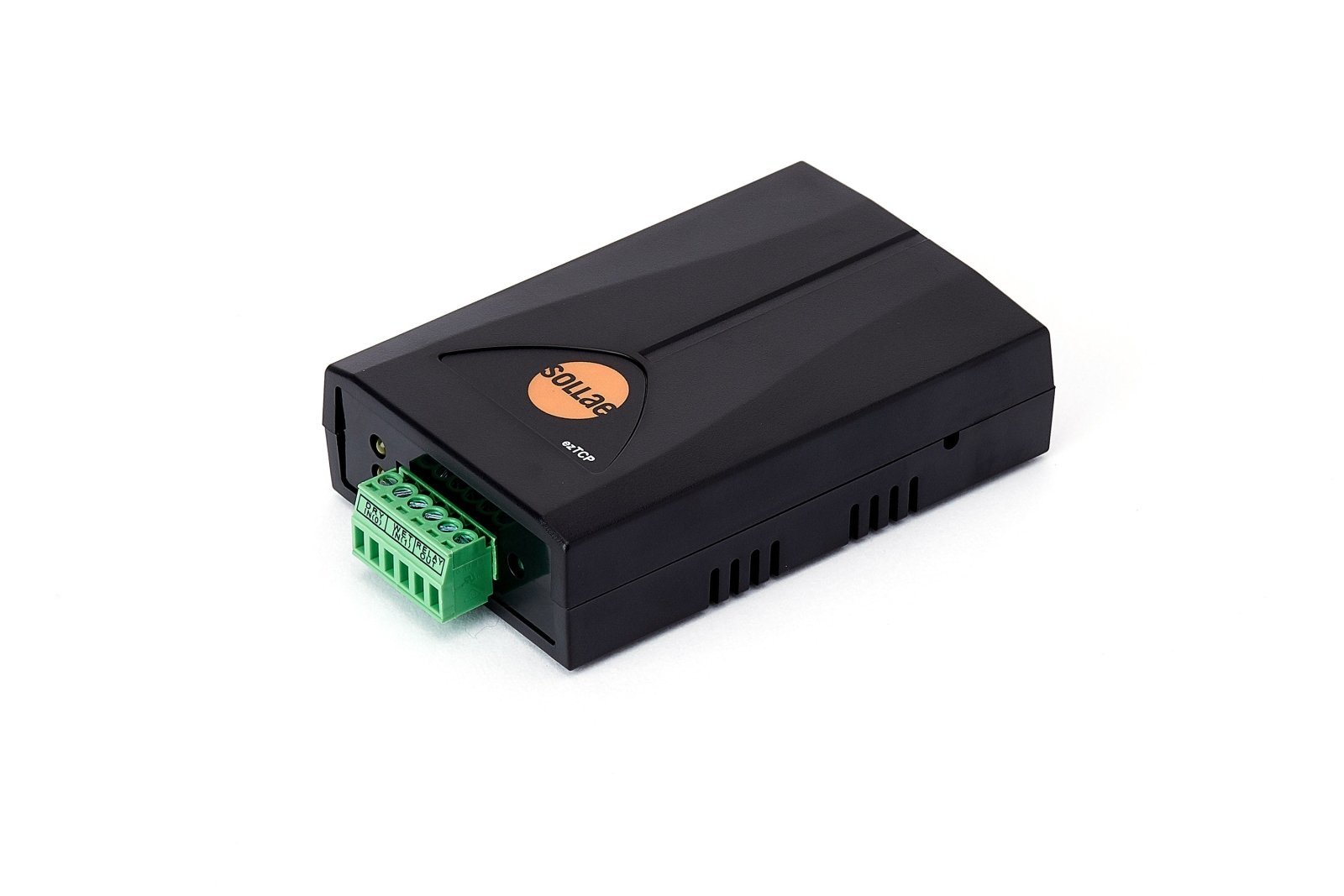

CIE-H12G ezTCP 2-Port Input / 1-Port Output Remote I/O Controller

The CIE-H12G from Sollae Systems is a remote I/O gateway equipped with 1 digital input port, 2 digital output ports and an Ethernet interface. Each digital input port is linked to a photocoupler. The input port can monitor the ON/OFF state of equipment (maximum is 24VDC). Each digital output port is linked to a relay. Apart from ON/OFF control, the digital output port can also be controlled to generate a pulse.

The CIE-H12G supports the Modbus TCP protocol. You can control/monitor equipment/sensors located in remote places from a PC, mobile app, HMI, or other Modbus TCP devices. You can use Sollae Systems' free software/app called ModMap or any software/app that supports Modbus TCP.

The CIE-H12G is also equipped with an embedded web server with a preloaded web page, so you can use any web browser on a PC/smartphone to access the web page to control/monitor equipment/sensors. The web page is customizable so you can easily change the web UI if needed.

The CIE-H12G allows each digital output port to be automatically controlled by a logic formula of digital input and output ports. Specifically, it can connect directly to multiple CIE-H10A, CIE-H14A, and/or other CIE-H12G controllers to form an I/O system called Internet Switch. The system allows the output port of a device to be controlled by input ports of other devices, and vice versa, via the Internet. CIE-H12G allows up to eight TCP connections simultaneously, enabling it to monitor sensors from different HMI devices/software/apps at the same time.

CIE-H12G Controller Features:

• Affordable for small sites
• 2x input ports (dry/wet contacts)
• Monitor & control via Modbus/TCP or Web
• Controlled by simple logic formula operating autonomously
• Web-based control over a custom web page
• Can be used as an Internet switch
• Free Modbus/TCP program (ModMap)

CIE-H12G Specifications:

• Digital Input Ports
  • Number of Ports: 2
  • Interface: Isolated by Photo-coupler
  • Electric Parameter: ON - over DC 4.5V, OFF - under DC 1.2V
  • Maximum Input Voltage: 24V DC
• Digital Output Port
  • Number of Ports: 1
  • Interface: Isolated by Relays (Type A: ON - short, OFF - open)
  • Relay Capacity: 5A (DC 28V)
• Network Interface
  • 10Base-T/100Base-TX Ethernet(RJ45)
  • Ethernet Speed: Auto Sense
  • 1:1 or Cross-over Cable Auto Sense

• Software Functions
  • Protocols:
    Modbus/TCP, HTTP, TCP, UDP, IPv4/IPv6 dual stack, ICMPv6/TCPv6/UDPv6
    ICMP, ARP, DHCP, PPPoE, DNS, DDNS(Dynamic DNS), Telnet

  • Security:
    IP & MAC Filtering - Restrict Host or Network
    Password for Configuring
  • I/O Control Methods: Modbus/TCP, HTTP, Macro

• Indicators (LEDs)
  • System LED: STS(RJ45), LINK(RJ45)
  • I/O Port LED: DI x 2, DO x 1
• Supplementary Software
  • ezManager: Configuration Tool for Windows
  • ModMap: Management Tool of I/O controllers for Windows
• Dimensions
  • Size: 96mm x 57mm x 24mm (3.8 x 2.24 x 0.95 inches)
  • Weight: Approx. 68 grams (2.4 ounces)
• Operating Environments
  • Input Voltage: DC 5±0.5V
  • Current Consumption: 160mA Typical
  • Operating Temperature: -40℃ ~ +85℃
  • Storage Temperature: -40℃ ~ +85℃
• Certifications
  • KC: Registration (KN 32, KN 35)
  • CE: EMC 2014/30/EU, RoHS 2011/65/EU

Package includes:

1X CIE-H12G ezTCP 1-Port Remote I/O Controller

Delivery is stock to 10 days ARO

Optional Accessories:

CIE-H12G Documentation and Resources

CIE-H12G / 2-Port Input / 1-Port Output Remote I/O Controller product web page:

CIE-H12 Videos:

Control via Internet, I/O Device Server Application | Internet Switch

Remote IO Controller, Controls via Internet, Web, Modbus TCP, Smartphone, PC using the CIE-H12

Entrance/Exit notification using the CIE-H12
