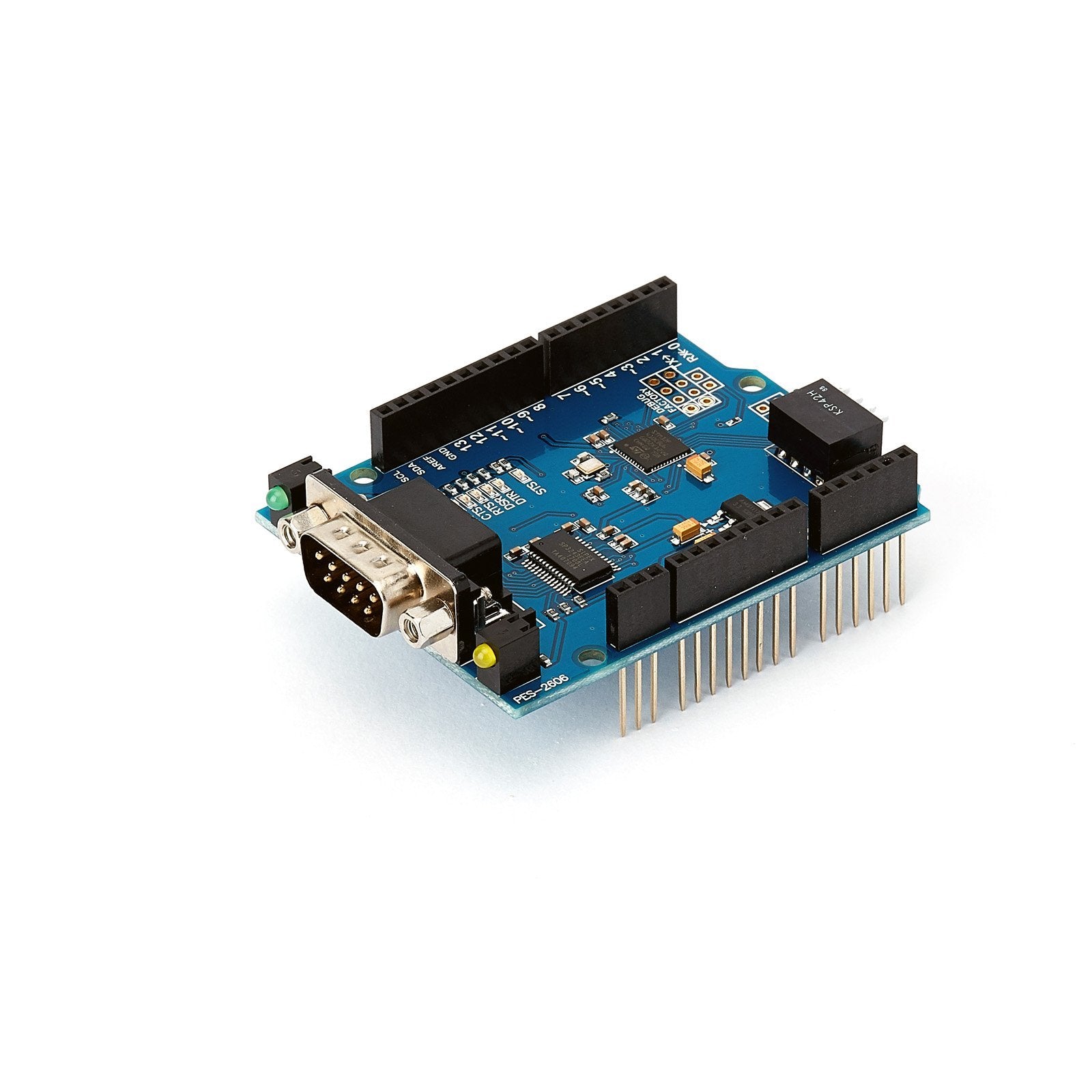

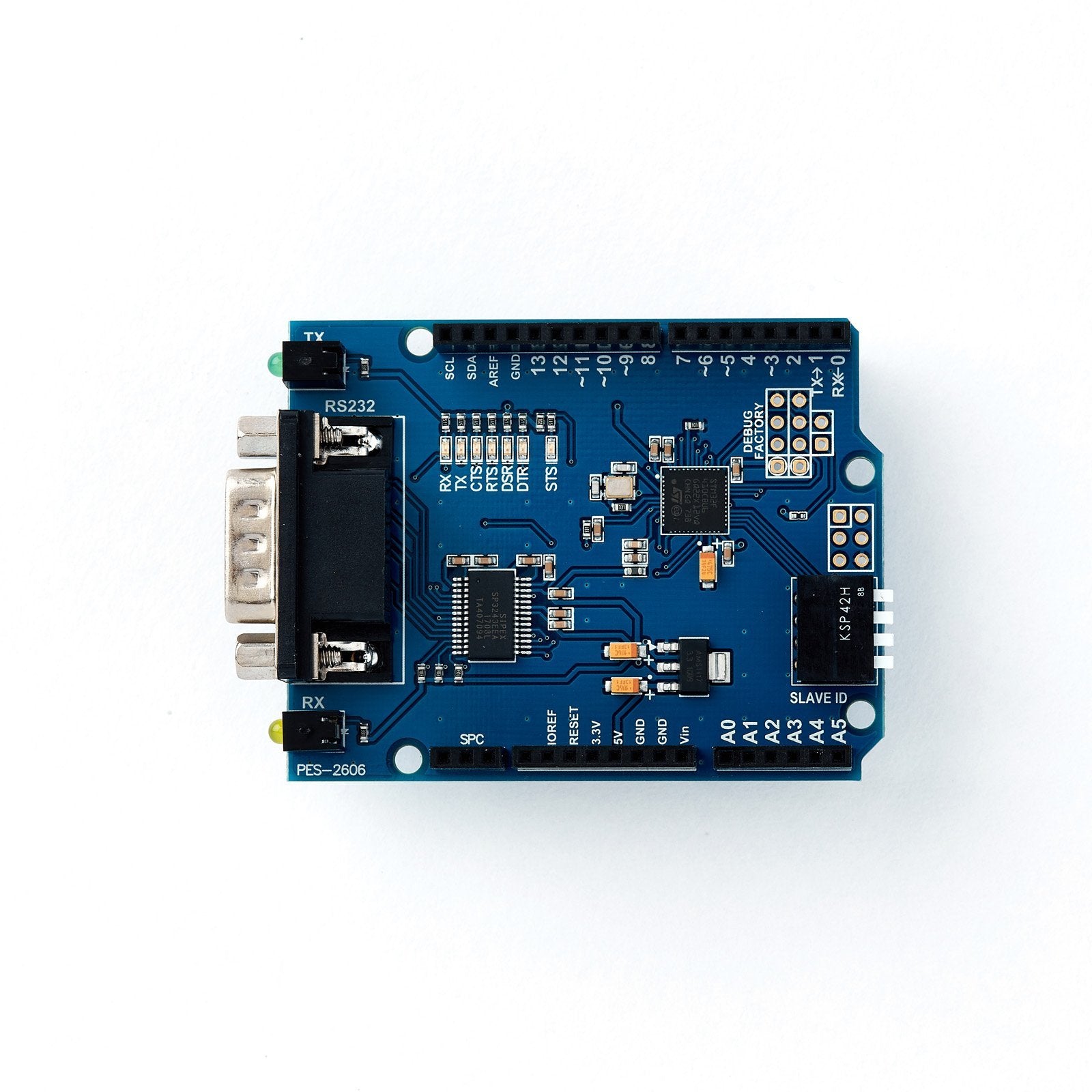

PES-2606 Smart RS232 Board for PHPoC Arduino Shield 2

The PHPoC PES-2606 RS232 Board is a Smart Expansion Board for PHPoC  V2 Arduino Shield designed to quickly enable as well as easily expand the capacity of RS232 communication function on Arduino Uno and Mega microcontrollers.

After stacking on a PHPoC P4S-347 V2 Shield with an Arduino Uno or Mega, this Smart RS232 Board contains the necessary hardware and firmware to communicate with RS232 devices. A single Arduino Uno/Mega can carry multiple Smart RS232 Boards.

Smart Expansion boards for PHPoC P4S-347 V2 Shields provide the additional hardware and firmware to boost Arduino Uno and Mega microcontrollers with advanced capabilities (e.g. control high-voltage devices, control/monitor motors with high accuracy).

They communicate with Arduino Uno/Mega via a defined set of commands and need to be stacked above a PHPoC [WiFi] Shield 2 (P4S-347 V2), firmware version of 1.4.0 or above, in order to interface with Arduino.

Specifications

• 9 Pin D-sub Male Interface for RS232
• RS232 Baud-rate: 1200bps ~ 115200bps
• DIP Switch to Set Address (ID)
• Flow Control: RTS/CTS, Xon/Xoff
• Inter Frame Delimiter Function
• Inter Frame Gap Function
• Transmission Delay Option
• Sending Break Signal Ability

Delivery is stock to 2 weeks, if the item is out of stock, please contact us for availability.
