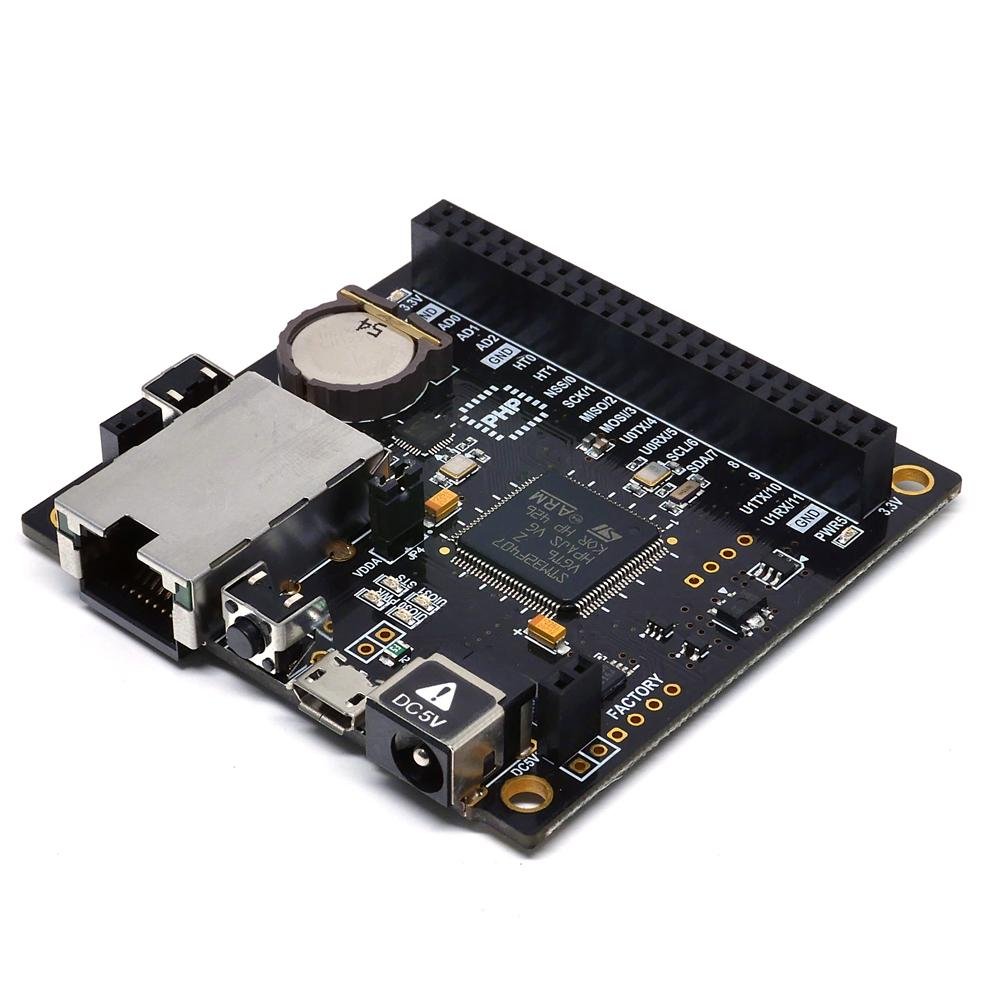

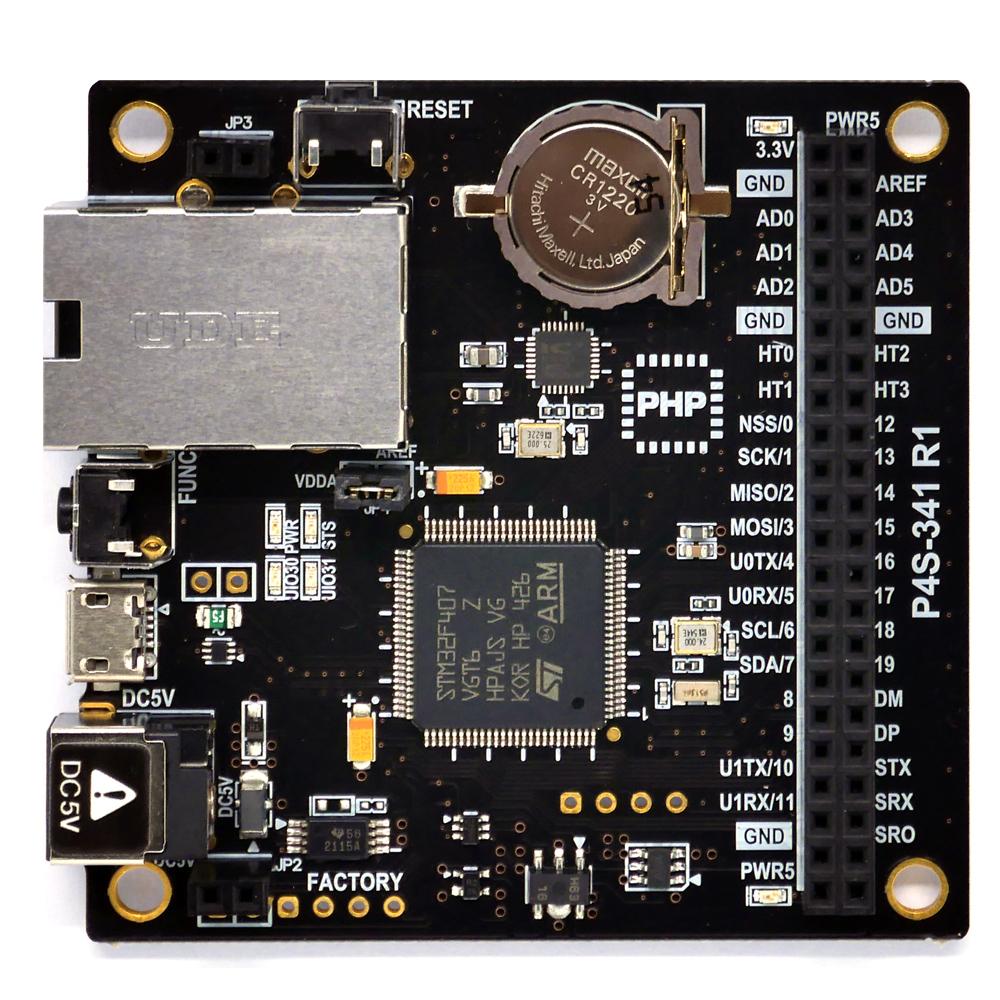

PHPoC Black Ethernet Wired LAN Programmable IoT Development Board P4S-341

The PHPoC Black (P4S-341) from Sollae Systems is an Ethernet-wired LAN programmable IoT development board embedded with a PHPoC interpreter. It is designed to make IoT development easier and more convenient than ever.

It supports various interfaces to connect with sensors and equipment. Additionally, PHPoC Black is equipped with Ethernet connectivity. It supports various network protocols, security protocols, authentication, and encryption algorithms, meeting all requirements for creating IoT projects and devices.

PHPoC Black uses the PHPoC language for programming, to create IoT applications. Ideas can be realized quickly and easily through some lines of code. Equipped with a Web server and WebSocket server, PHPoC allows users to develop real-time Web applications for their IoT systems.

With PHPoC Black, you can easily monitor and control your sensors, actuators, and other equipment from a remote site via a web browser, a smartphone, or an Amazon Echo.

Additionally, PHPoC Black can be used with PHPoC expansion boards to add advanced capabilities, flexibility, and extendibility.

PHPoC Black Features:

• PHPoC (PHP on Chip) interpreter embedded
• Uploading and debugging codes via USB
• 10Base-T/100Base-TX Ethernet (RJ45)
• 10 x digital input/output ports
• 14 x sharing ports (Digital Input/Output, SPI, I2C, UART)
• 6 x analog input ports
• HTTP/SSH/Websocket server
• Web page customization available (accessible with smart devices)

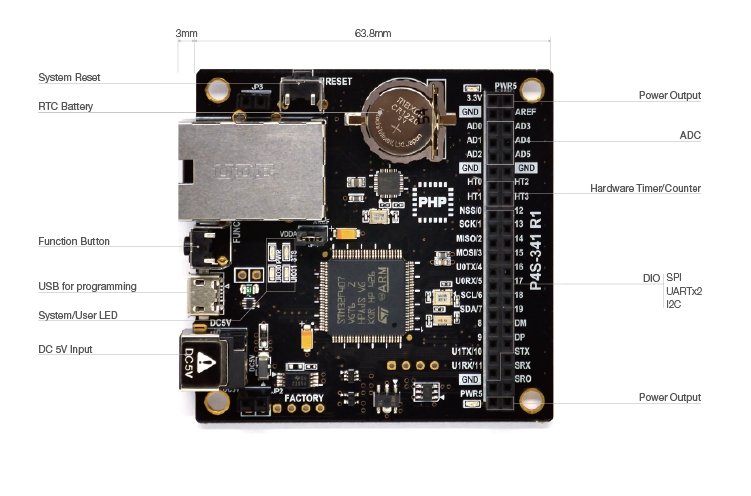

PHPoC Black (P4S-341) Specifications:

Processor
Core: Cortex-M4 168MHz
Flash: System-512K Bytes, User-512K Bytes
SRAM: 192K Bytes

Power Input
Input Voltage: 5V±10%
Input Port: DC Jack or USB device port
Max Current: DC Jack : 1.5A, USB device port : 500mA

Network Interface
Ethernet: 10 Base-T/100Base-TX Ethernet

USB Interface
USB Host: USB Host interface for expansion boards
USB Device: PC interface for programming

DIO
Type: 3.3V CMOS level digital I/O
Ports: 22 Ports Maximum
Mode: Input/Output, push-pull/open-drain, pull-up/pull-down

Communication
UART: 2 ports (RXD, RXD, RTS, CTS) with hardware flow control
SPI: 1 port
I2C: 1 port (100Kbps or 400Kbps)

ADC
Resolution: 12bits
Channels: 6

Hardware Timer/Counter
Mode: PWM output, Pulse output, Toggle output, Capture
Unit: Milliseconds or microseconds
Channels: 4

RTC
Battery: CR1225 Coin Battery (48mAh)
Peripherals: Realtime Clock, 4KB Backup SRAM

LED
System LED: Power, Status, 3.3V, PWR5
User LED: uio0.30, uio0.31

Power Output
3.3V Max Current: 1A
PWR5 + 3.3V Max Current: 1.5A

Dimensions
Dimensions: 63.8mm X 66.5mm X 13mm
Weight: 30g

Package Includes:

Use this to facilitate powering this PHPoC board from your computer USB connector, USB hub, a standard USB power supply or power bank.

Delivery is stock to 2 weeks, if the item is out of stock, please contact us for availability.

Documentation & Resources:

Videos:

PHPoC Black Introduction

Programmable IoT Platform Solution Guide

Cocktail Machine with PHPoC (Alexa Version)
