PT100 Temperature Sensor Probe for ezTCP SIG-5560 Temperature Gateway

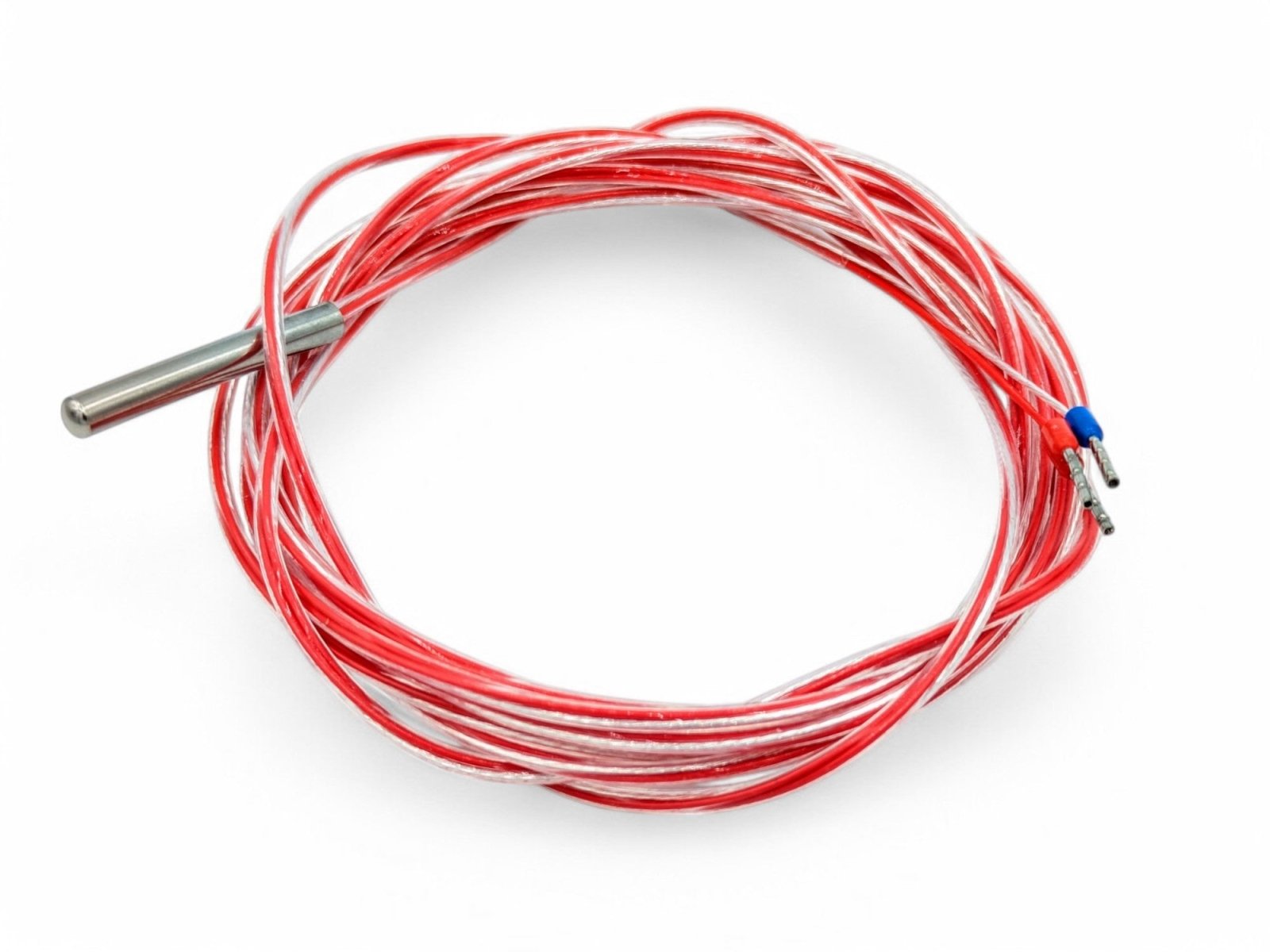

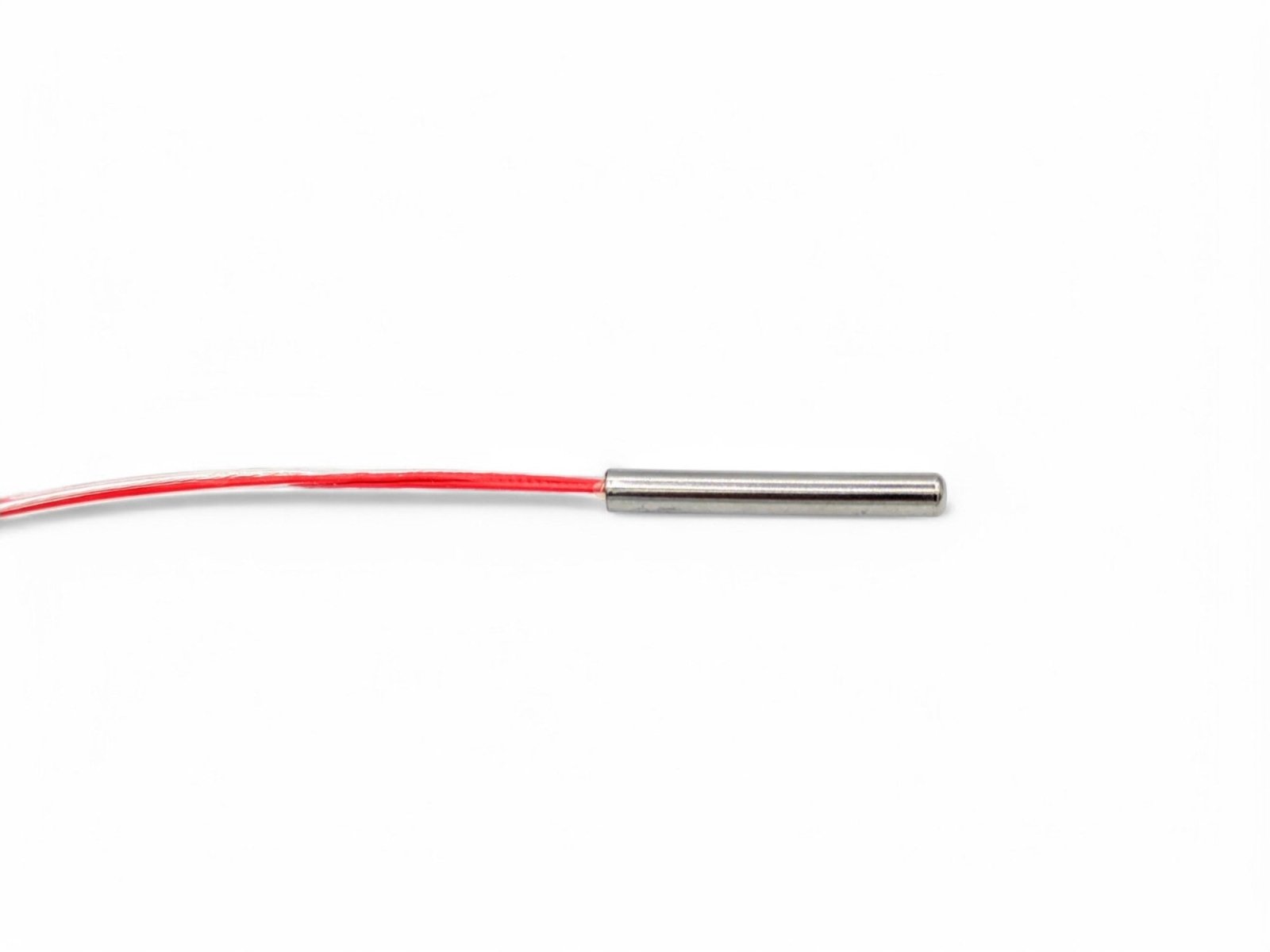

The PT100 Temperature Sensor Probe is a 3-wire temperature sensor probe for use with the Sollae Systems ezTCP and SIG-5561 Temperature Gateways. It offers a temperature measurement range of -50C to +200C and 2M (~79-inch) wire leads.

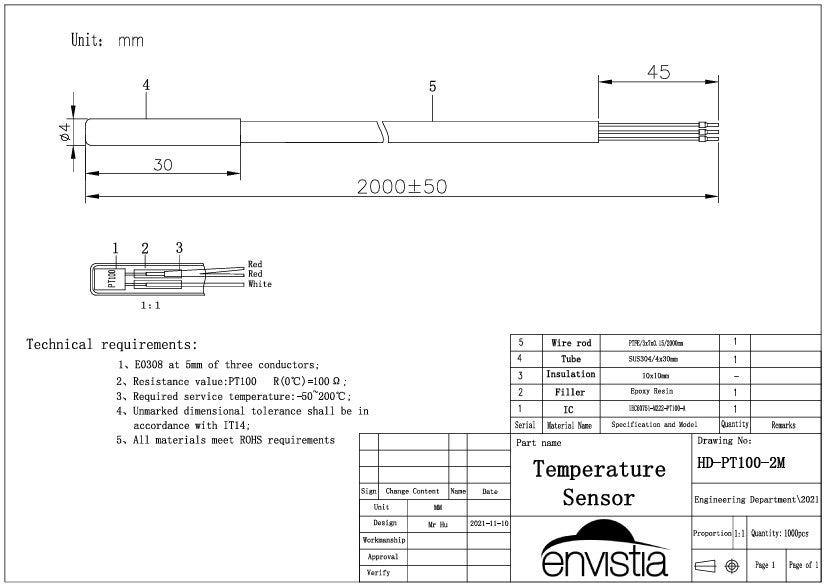

PT100 Temperature Sensor Specifications

• Resistance Value (R): 100 Ohm at 0 C, temperature error +/-0.15C

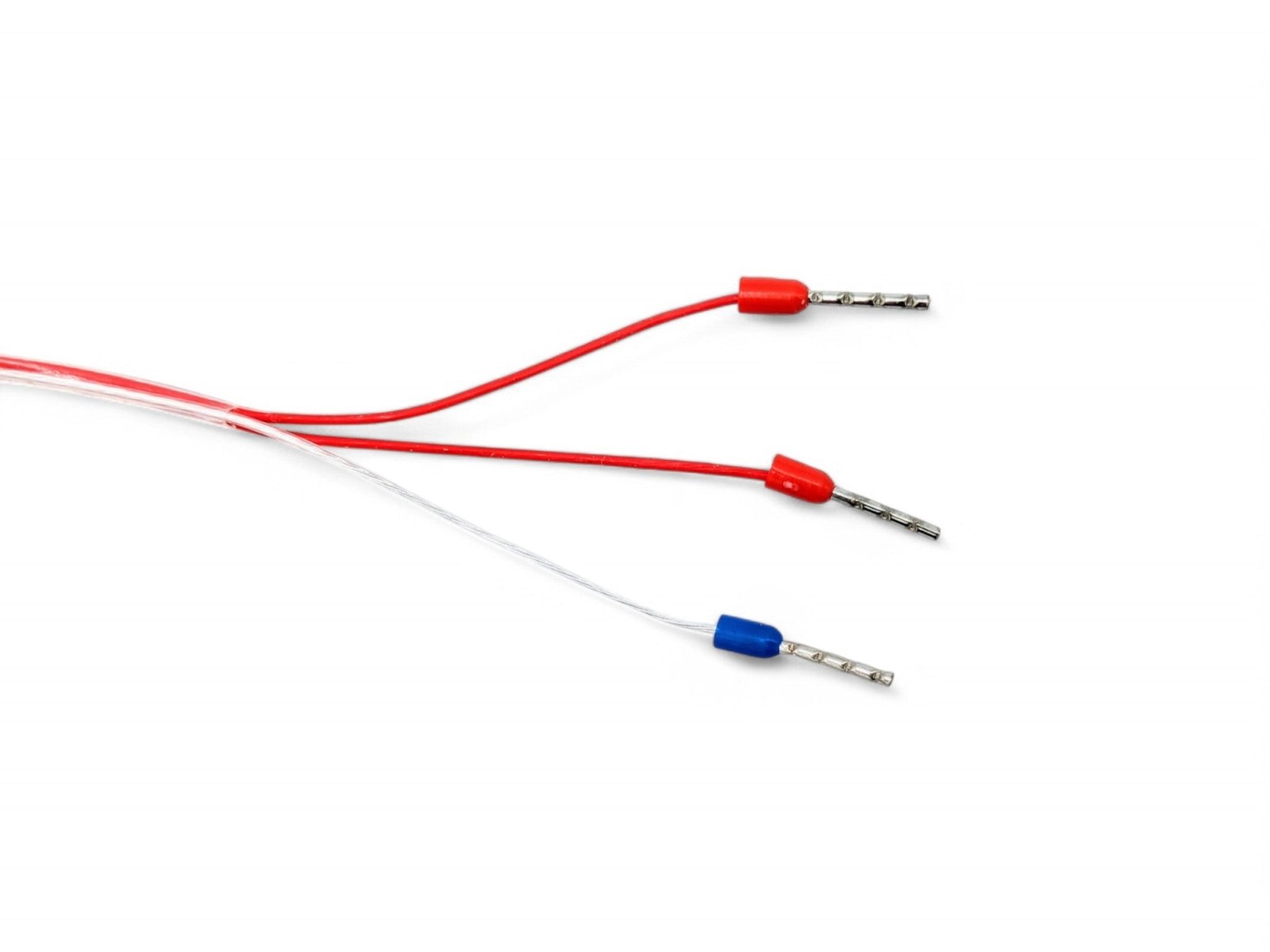

• Lead Wires: 2M length (Approx 79 inches), leads are silver-plated wire to ensure resistance stability
• Withstand Voltage: 500V AC / 3S without breakdown or flicker
• Insulation Resistance: >100 MOhm (between protective shell and lead)
• Operating Temperature Range: -50C to +200C
