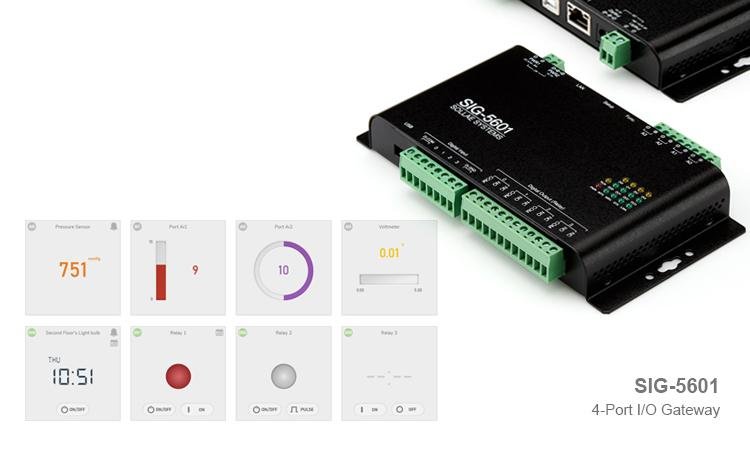

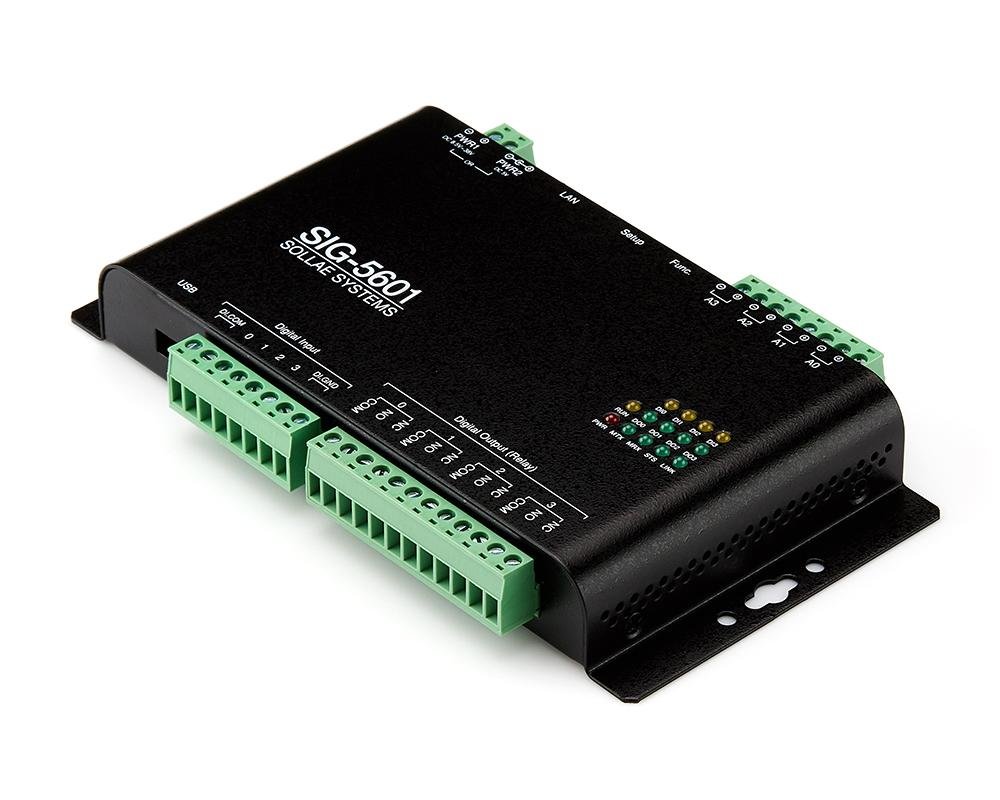

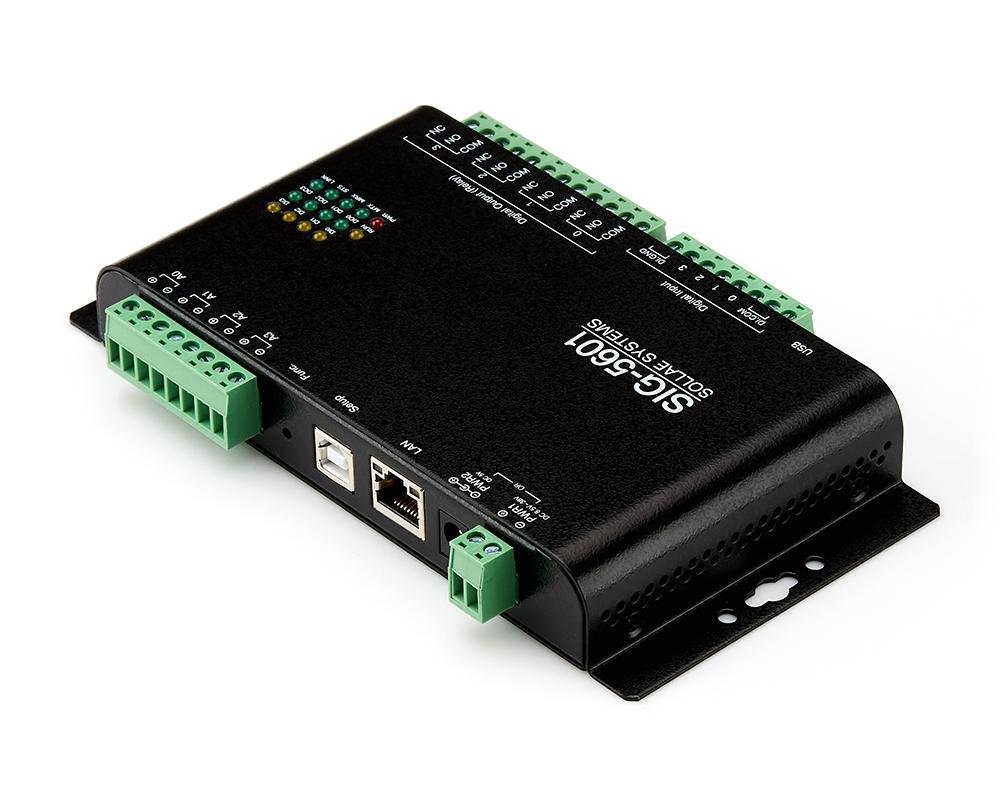

SIG-5601 ezTCP 4-Port I/O Gateway to Sollae Cloud

The Sollae Systems SIG‑5601 is an industrial‑grade, cloud‑enabled 4‑port I/O gateway that makes it easy to bring sensors and equipment online for remote monitoring, alarming, and control. With 4 analog inputs, 4 digital inputs (with counters), 4 relay outputs, and both Ethernet and Wi‑Fi, it connects directly to the free so you can view data, receive email alerts, and control devices from any web browser—PC, tablet, or smartphone.

Easy to Use – From Power‑On to Cloud in a Few Steps

The SIG‑5601 is designed to be deployed quickly by technicians and engineers without custom software:

1. Wire and power the gateway
   • Connect sensors to the 4 analog input ports (0–5 V, 4–20 mA, or 0–20 mA selectable)
   • Connect switches, meters, or contacts to the 4 digital input ports (wet/dry, NPN, PNP, 4.5–25 V)
   • Connect relays, lights, pumps, valves, or alarms to the 4 relay outputs (Type C, NO/NC)
   • Supply DC power via PWR1 (8.5–38 V) or PWR2 (5 V) terminal/jack
2. Connect to the network
   • Plug in Ethernet (10/100Base‑T, auto‑sense), or
   • Insert a compatible USB Wi‑Fi dongle and join your 802.11b/g wireless LAN (Infrastructure mode)
3. Discover and configure with spFinder
   • Install the free spFinder tool on Windows
   • Automatically search for SIG‑5601 over LAN or USB
   • Choose DHCP or a static IP, set analog input modes (V / 4–20 mA / 0–20 mA), and save settings
4. Register to Sollae Cloud
   • Create or sign into your Sollae Cloud account
   • Use the device’s Client ID (shown in spFinder) to register it under your account
   • The device connects securely via MQTT over TLS 1.2 with client‑certificate authentication
5. Start monitoring, alerts, and control
   • View real‑time input values and I/O states on web dashboards
   • Configure email notifications and event rules
   • Control local outputs and other ezTCP devices (e.g., SIG‑5451, SIG‑5601) directly from the cloud

No custom programming is required—setup is done via spFinder and the Sollae Cloud web interface.

Built for Industrial & Commercial Automation

With robust power options, strong isolation, and a wide operating range, the SIG‑5601 is ready for demanding environments:

• Industrial temperature range: −40°C to +85°C (with 5–85% RH, non‑condensing)
• Reverse‑voltage and surge protection on power inputs
• 1000 VAC isolation on Ethernet
• Rugged enclosure: 180 × 110 × 26 mm, ~485 g

Typical applications include

• Factories & process plants – read pressure, level, flow, and temperature transmitters (4–20 mA/0–5 V), monitor counters on machines, and drive relays for alarms, valves, or contactors.
• Building & facility management – monitor status inputs (doors, alarms, run/stop contacts) and control fans, pumps, lights, or dampers remotely.
• Utilities & infrastructure – log counts and states at remote pump stations, tanks, or utility rooms and switch equipment via relays.
• Energy and OEM equipment – integrate analog feedback, digital status, and remote relay control into skid systems, panels, or control cabinets.

Because the SIG‑5601 combines analog inputs, digital inputs with counters, and relay outputs in one device, it is especially suited for multi‑signal monitoring and control at a single industrial or commercial site.

Simple Email Alerts & Cross‑Device Control

Once connected to Sollae Cloud, you can easily create rule‑based automation:

• Email notifications
  • Trigger emails when:
    • An analog input passes a preset threshold (e.g., sensor out of range)
    • A digital input changes state or counter value (rising/falling edges)
    • A digital output changes state
  • Ideal for maintenance, alarm forwarding, and condition monitoring without on‑site staff.
• Event‑based control of other ezTCP devices
  • Define events so that when a condition is met on this SIG‑5601, the cloud can:
    • Change its own relay outputs, or
    • Send commands to other ezTCP devices such as SIG‑5451 or another SIG‑5601
  • Enables simple IIoT logic (for example, if a temperature gateway exceeds a limit, turn on a fan or alarm relay on the SIG‑5601).
• Time‑based schedules
  • Create cloud schedules (like smartphone alarms) to turn outputs ON/OFF or pulse at specific times or days
  • Use for lighting, ventilation, signage, or recurring process operations.

All configuration is done via the Sollae Cloud web UI, with support for multi‑user access if needed.

Specifications

• Digital Input
• Input Type: Dry Contact / Wet Contact / NPN / PNP
• Input Voltage Range: 2.5V ~ 25V
• Number of Ports: 4
• Digital Output
• Output Type: Relay (Type C - NO/NC, Max DC 30V/2A with resistive load)
• Number of Ports: 2
• Analog Input
• Input Type: Voltage (0V ~ 5V) or Current (4mA ~ 20mA / 0mA ~ 20mA)
• Resolution: 12 bits
• Number of Ports: 4
• Network Physical Interface
  • Network Interface: 10Base-T/100Base-TX Ethernet(RJ45)
  • Ethernet Speed: Auto Sense
  • 1:1 or Cross-over Cable Auto Sense
  • 1000 VAC Isolation
  • IEEE802.11b/g Wireless LAN with a USB dongle
• Wired Lan:
• Wireless LAN:
• Software Functions
• Wireless LAN Mode: Infrastructure
• Protocols: IPv4/IPv6 Dual Stack
  TCP/UDP
  ICMP, DHCP, mDNS, TLS, MQTT
  SSL/TLS
  WPA-PSK / WPA2-PSK, WPA-Enterprise (TTLS / PEAP)

• Indicators
• LEDs: PWR, RUN, STS, LINK, MTX, MRX, Di0~Di3, Do0~Do3
• Management
• spFinder: Configuration and Monitoring Tool
• Access Security: Password
• Dimensions
• Size: 180mm x 110mm x 26mm (7.1 x 4.3 x 1 inches)
• Weight: About 485g (17.1 ounces)
• Operating Environment
  • PWR1 - Terminal Block, DC 8.5V~38V
  • PWR2 - DC jack, DC 5V±0.5V
  • USB (Setup) - micro-USB, DC5V±0.5V
• Input Voltage:
• Protection: Reverse Voltage Protection / Surge Protection
• Power Consumption: Typically 3.3W
• Operating Temperature: -40℃ ~ +85℃
• Storage Temperature: -40℃ ~ +85℃
• Certifications
• KC Registration(KN 32, KN 35)
• CE EMC 2014/30/EU, RoHS 2011/65/EU
• FCC FCC Part 15 Subpart B, Class A

Package includes

1X SIG-5601 ezTCP 4-Port I/O Gateway to Sollae Cloud

The delivery of this item is stock to 2 weeks. Please contact us prior to placing your order for a specific delivery time.

Documentation & Resources

Remote Control and Monitoring via the Sollae Cloud with SIG-5601 all-in-one IoT Gateway Video
